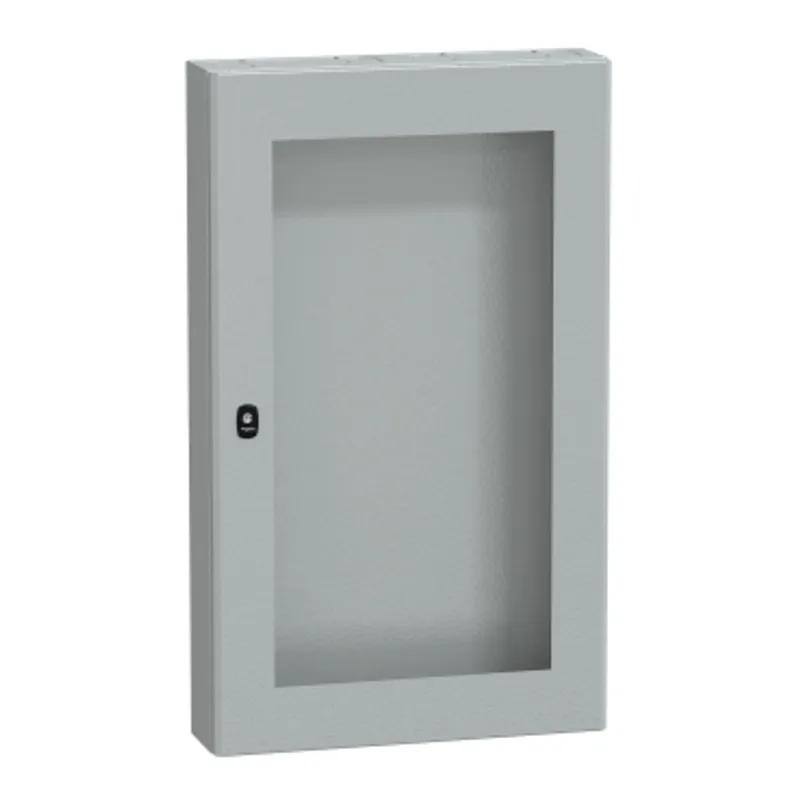

Schneider Electric NSYS3DM10615T
PanelSeT S3DM H1000xW600xD150.IP66 IK10 RAL7035. top and bottom
- MPN
- NSYS3DM10615T
- EAN
- 3606480158582
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DM10615T?
This S3DM is a modular distribution enclosure designed for wall-mounting and made of steel It has nominal dimensions of 1000mm height, 600mm width and 150mm depth, with a glazed door The door is reversible up to 120° and secured with a three-point lock and 3mm double-bar locking system The enclosure is colored grey (RAL 7035) and has an epoxy-polyester powder structured finish It comes with two cable gland plates (top and bottom), one body, one door, one lock and one document holder The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device This S3DM is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It is certified by DNV, cUL, BV, LR, UL, and GL The enclosure is also conforming to IEC 62208 It has a gutter-shaped front rail double sheet thickness and a single piece body The accessibility for operation is from the front This compact enclosure is BV, DNV, GL, LR, c. UL certified.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DM |
| Application | Modular distribution application |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Product destination | For installation of modular chassis DLM |
| Device composition | 2 cable gland plate: top and bottom, 1 body, 1 door, 1 lock |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | DNV, cUL, BV, UL, GL |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 103.500 cm × 61.500 cm × 20.000 cm (L × W × H), 23.800 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 140.000 cm (L × W × H), 208.000 kg |
