Schneider Electric NSYS3D81230DP

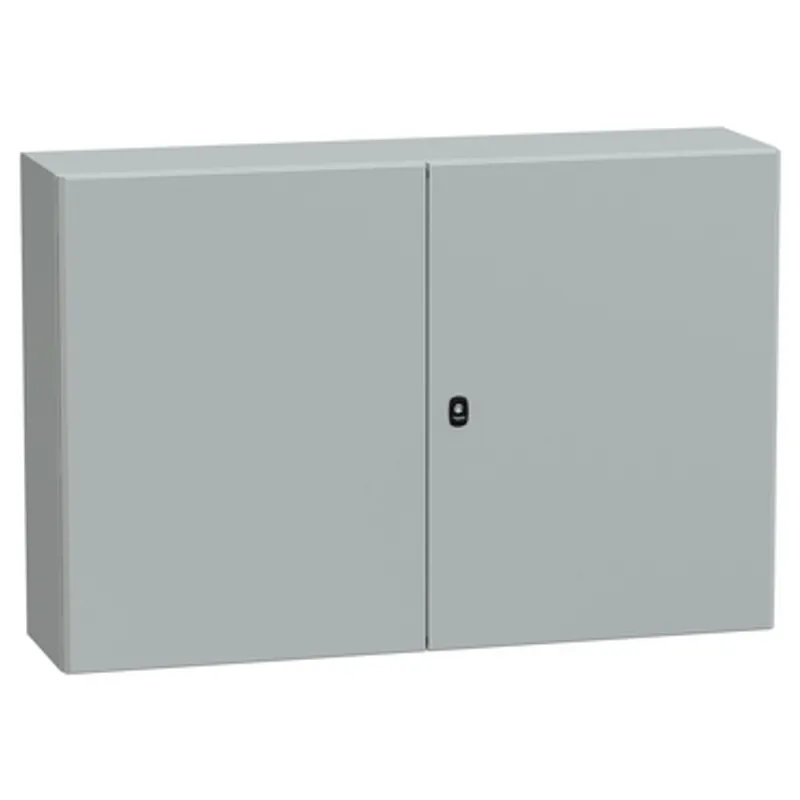

Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 800x1200x300mm, IP55, IK10
- MPN
- NSYS3D81230DP
- EAN
- 3606480159015
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D81230DP?
"PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments" "It has a nominal height, width and depth of 800mm, 1200mm and 300mm, respectively" "The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish" "It consists of a body, two cable gland plates, two plain doors with a three-point lock and a 3mm double-bar insert, and a galvanised steel mounting plate" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "Furthermore, it is possible to change the opening side of the doors (reversible)" "The doors and the cable gland plates can be removed for maintenance purposes, as well as the mounting plate by fixing elements" "This enclosure has a net weight of 61kg and is certified by cUL, LR, DNV, UL, GL and BV" "It has an IK10 rating (IEC62262) and an IP55 rating (IEC60529)" "The variant particularities include a single-piece body and a gutter-shaped front rail double sheet thickness" "The accessibility for operation is only from the front"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 1200 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 2 door with lock, 1 mounting plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, DNV, UL, GL, BV |
| Net weight | 61 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 123.000 cm × 81.000 cm × 36.000 cm (L × W × H), 65.000 kg |
| Package 2 | 2 PAL, 123.000 cm × 80.000 cm × 95.000 cm (L × W × H), 141.000 kg |
