Schneider Electric NSYS3D8620T

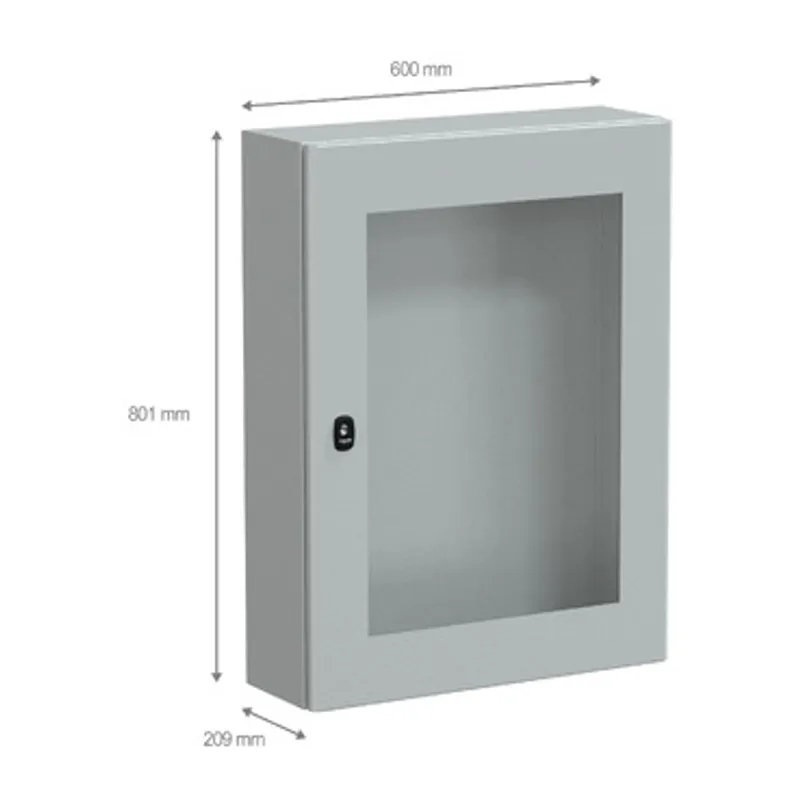

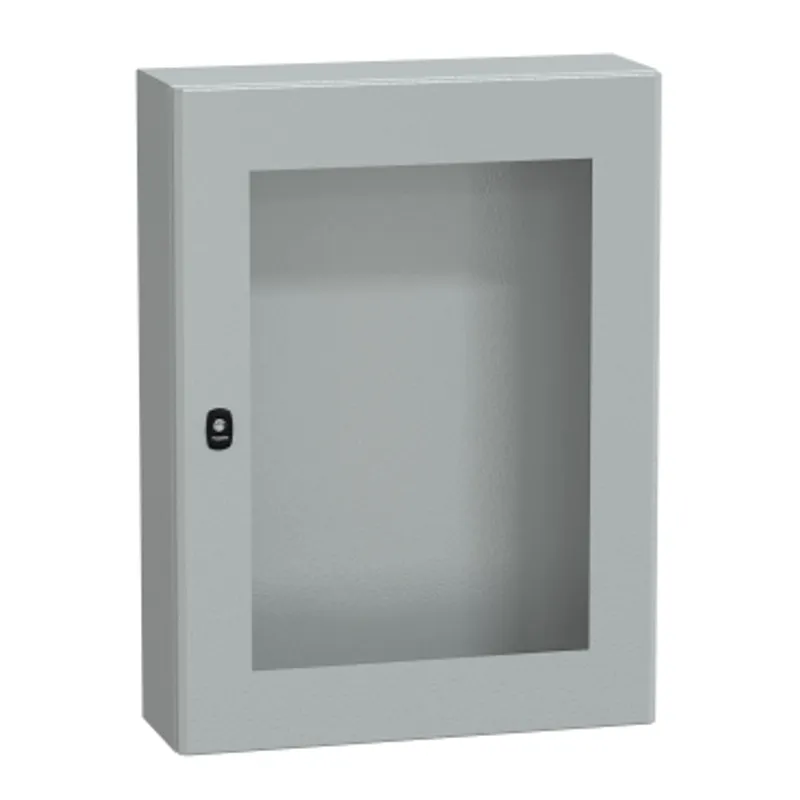

Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 800x600x200mm, IP66, IK08
- MPN
- NSYS3D8620T
- EAN
- 3606480158988
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D8620T?
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has a nominal height, width and depth of 800mm, 600mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It has a single piece body and a gutter-shaped front rail double sheet thickness for high impact resistance It is certified by GL, BV, UL, DNV, cUL and LR and has a NEMA 4X/13 rating The enclosure consists of a body, a glazed door, a lock and a cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | GL, BV, UL, DNV, cUL |
| Net weight | 21.5 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 81.000 cm × 60.500 cm × 24.500 cm (L × W × H), 18.583 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 177.000 cm (L × W × H), 236.000 kg |
