Schneider Electric NSYS3D81030DP

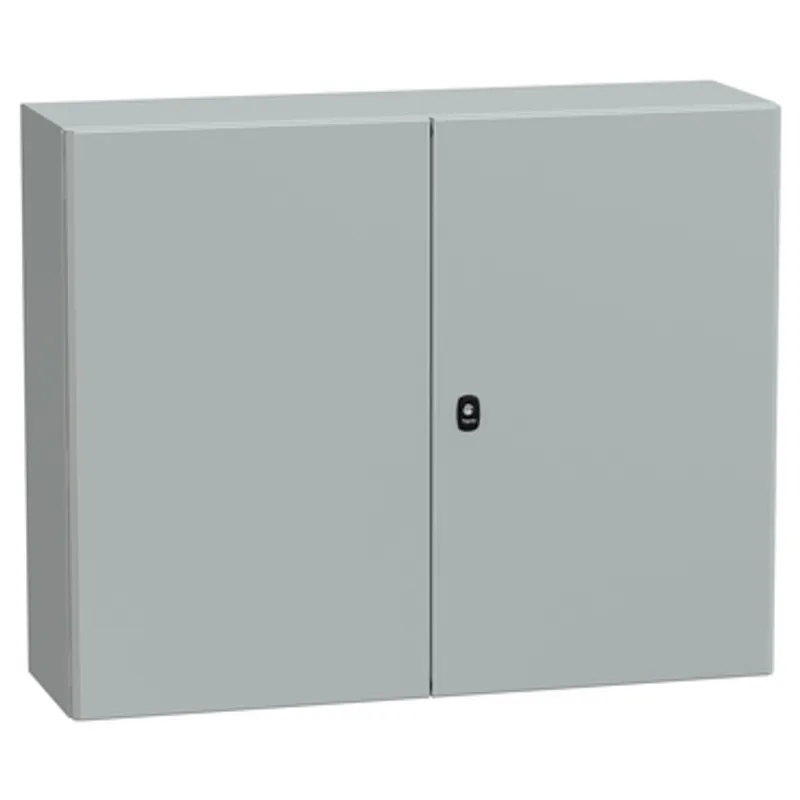

Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 800x1200x300mm, IP55, IK10
- MPN
- NSYS3D81030DP
- EAN
- 3606480159046
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D81030DP?
Spacial S3D is a multi-purpose wall-mounting enclosure designed for use in harsh environments It is certified for cUL, UL, GL, DNV, BV, and LR standards and has a nominal height, width and depth of 800mm, 1000mm and 300mm, respectively The enclosure is built with steel and has a grey colour (RAL 7035) with an epoxy-polyester powder surface finish It consists of a body, two cable gland plates, two plain doors with locks and a mounting plate made of galvanized steel The doors can be opened up to 120° and the lock type is three points lock with a 3mm double-bar The doors, cable gland plates and mounting plate are removable for maintenance purposes The net weight of the enclosure is 51kg
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 2 door with lock, 1 mounting plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL, GL, DNV, BV |
| Net weight | 51 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 102.500 cm × 82.000 cm × 36.000 cm (L × W × H), 47.600 kg |
| Package 2 | 6 PAL, 120.000 cm × 102.000 cm × 180.000 cm (L × W × H), 300.000 kg |
