Schneider Electric NSYS3D81030D

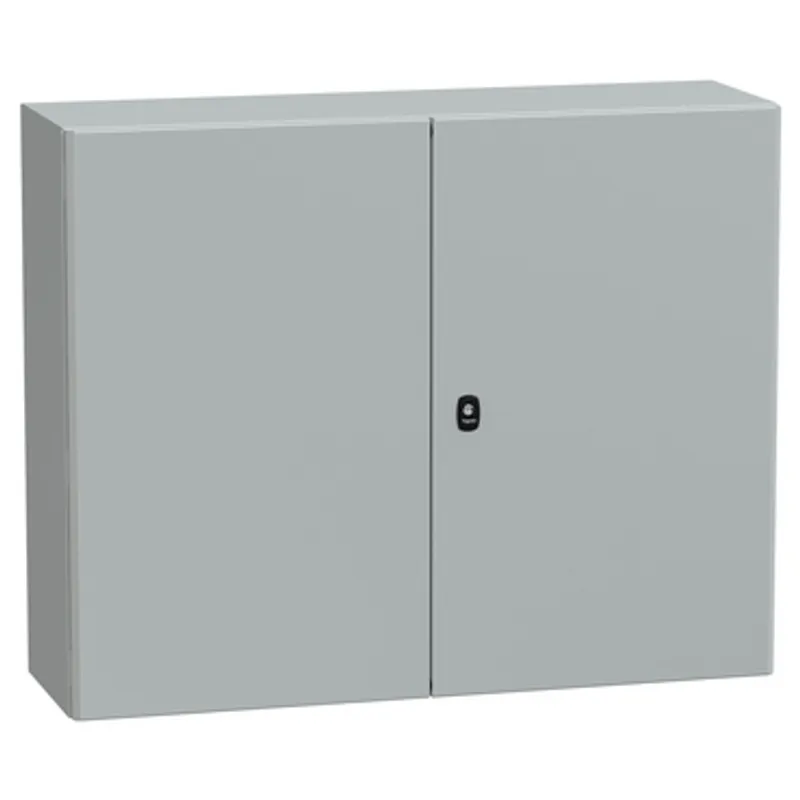

Wall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 800x1000x300mm, IP55, IK10
- MPN
- NSYS3D81030D
- EAN
- 3606480159053
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D81030D?
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed to withstand high impact and harsh environmental conditions It is certified by LR, BV, DNV, GL, UL and cUL, and has a IK10 (IEC62262) rating and an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 800mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 lock, 2 door |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, DNV, GL, UL, cUL |
| Net weight | 38 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 103.000 cm × 82.000 cm × 35.500 cm (L × W × H), 34.400 kg |
| Package 2 | 6 PAM, 120.000 cm × 100.000 cm × 179.000 cm (L × W × H), 218.000 kg |
