Schneider Electric NSYS3D6640P
Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600x600x400mm, IP66, IK10
- MPN
- NSYS3D6640P
- EAN
- 3606480159145
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D6640P?

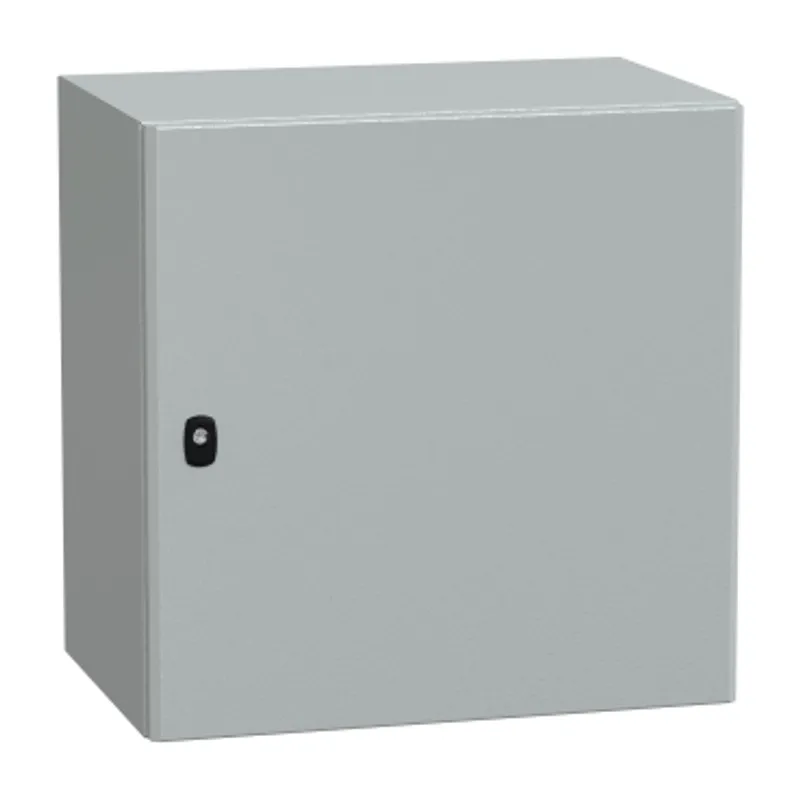

Spacial S3D is a multi-purpose wall-mounting steel enclosure with a nominal height, width and depth of 600mm, 600mm and 400mm, respectively It has a grey colour (RAL 7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one mounting plate, one door with lock and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside and it is also reversible The door is secured with a three-point lock with a 3mm double-bar insert The door, cable gland plate and mounting plate are removable for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

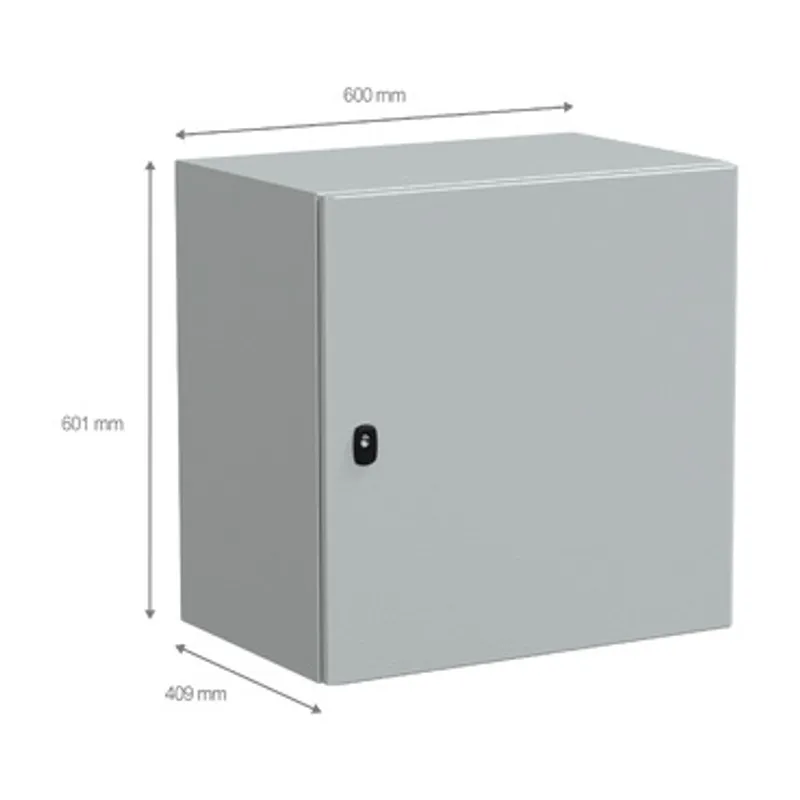

| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 mounting plate, 1 door with lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | BV, DNV, cUL, UL, GL |
| Net weight | 23 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 62.000 cm × 61.500 cm × 44.500 cm (L × W × H), 23.200 kg |
| Package 2 | 9 PAM, 120.000 cm × 100.000 cm × 200.000 cm (L × W × H), 223.500 kg |
