NSYS3D6630PWall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600x600x300mm, IP66, IK10
Schneider Electric NSYS3D6640T
Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 600x600x400mm, IP66, IK08
- MPN
- NSYS3D6640T
- EAN
- 3606480159138
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

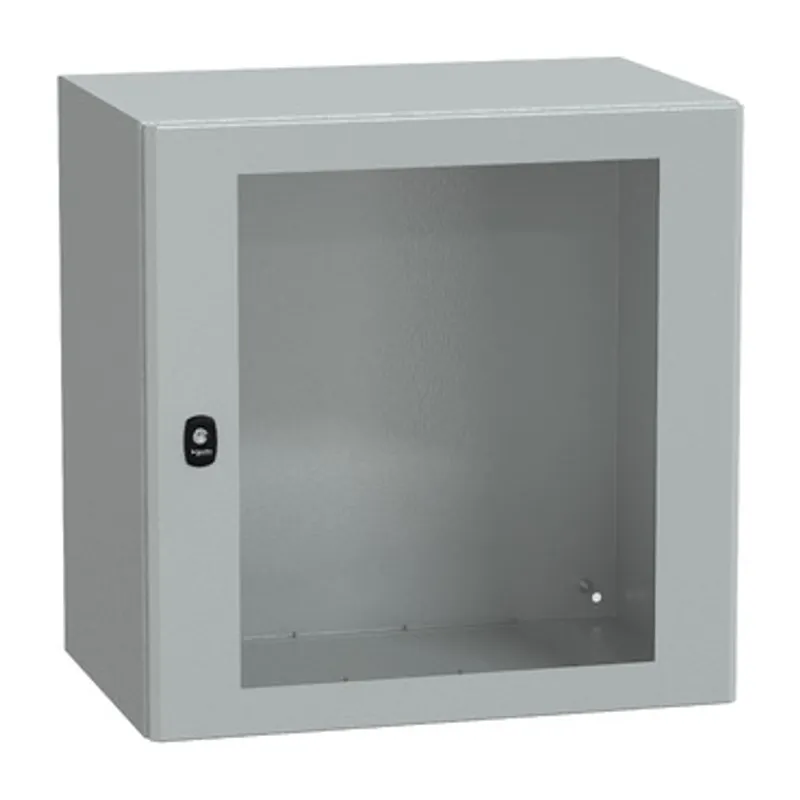

What is the Schneider Electric NSYS3D6640T?
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It is certified by cUL, UL, LR, BV, DNV and GL and has a nominal height, width and depth of 600mm, 600mm and 400mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, one glazed door, one cable gland plate and a lock The door can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 19,3kg
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

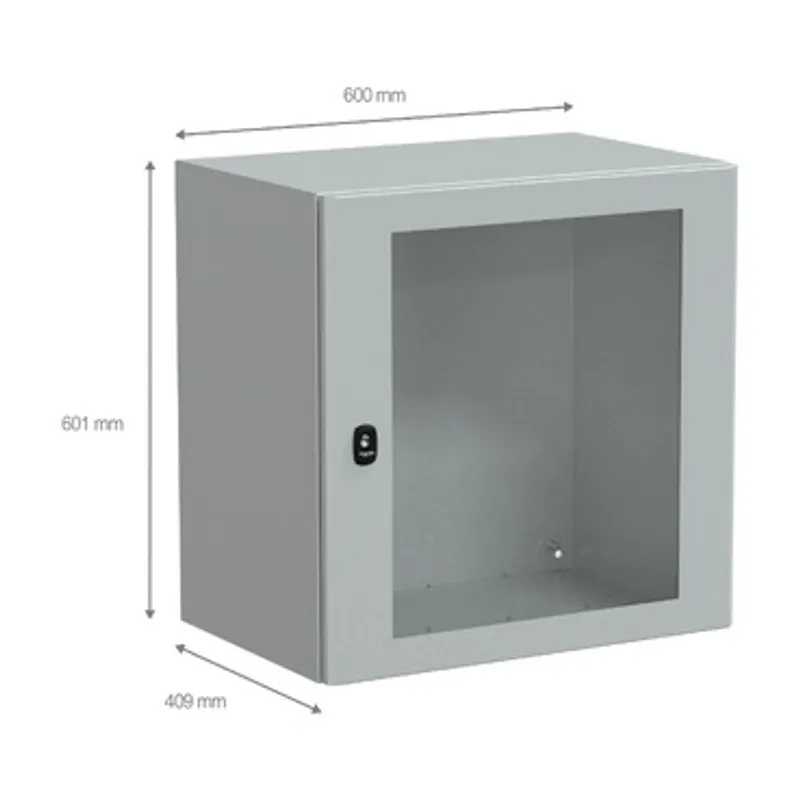

| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL, BV, DNV, GL |
| Net weight | 19.3 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 62.000 cm × 61.000 cm × 44.500 cm (L × W × H), 19.000 kg |
| Package 2 | 9 PAM, 120.000 cm × 100.000 cm × 200.000 cm (L × W × H), 184.000 kg |
