Schneider Electric NSYS3D6630
Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 600x600x300mm, IP66, IK10
- MPN
- NSYS3D6630
- EAN
- 3606480159183
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D6630?

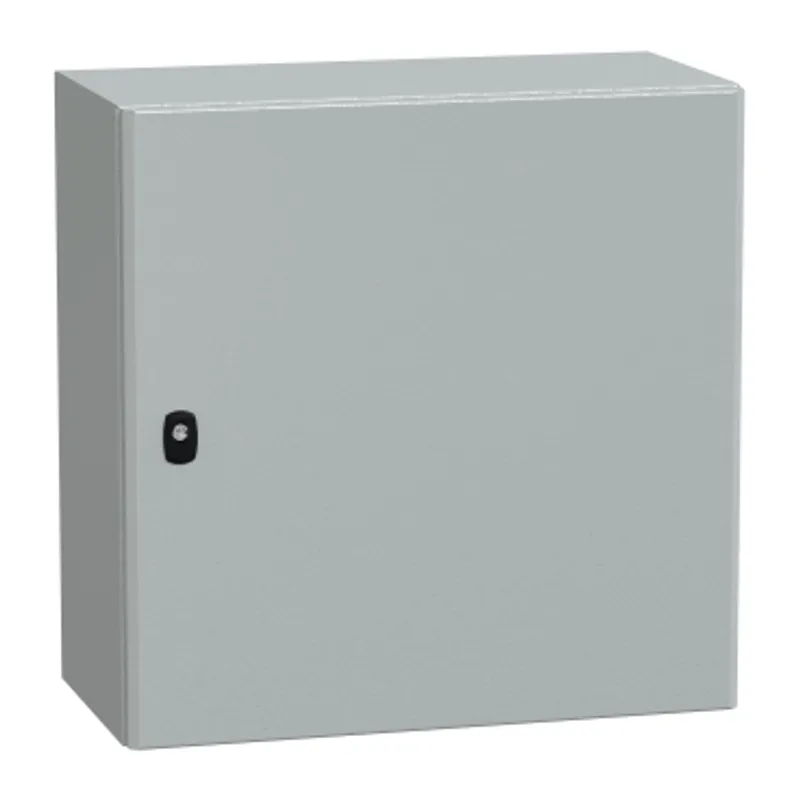

Spacial S3D is a wall-mounting enclosure for multi-purpose applications It is made of steel with an epoxy-polyester powder surface finish and is grey in colour (RAL 7035) The enclosure has a nominal height, width and depth of 600mm, 600mm and 300mm, respectively It is certified by UL, cUL, GL, LR, BV and DNV and has a NEMA 4X/13 rating It is also IK10 (IEC62262) rated, meaning it can withstand high impacts, and has an IP66 (IEC60529) rating, making it dust and water-resistant The enclosure consists of a body, one plain door, one lock and one cable gland plate The door can be opened up to 120° and can be reversed, allowing easy access to the equipment inside It has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

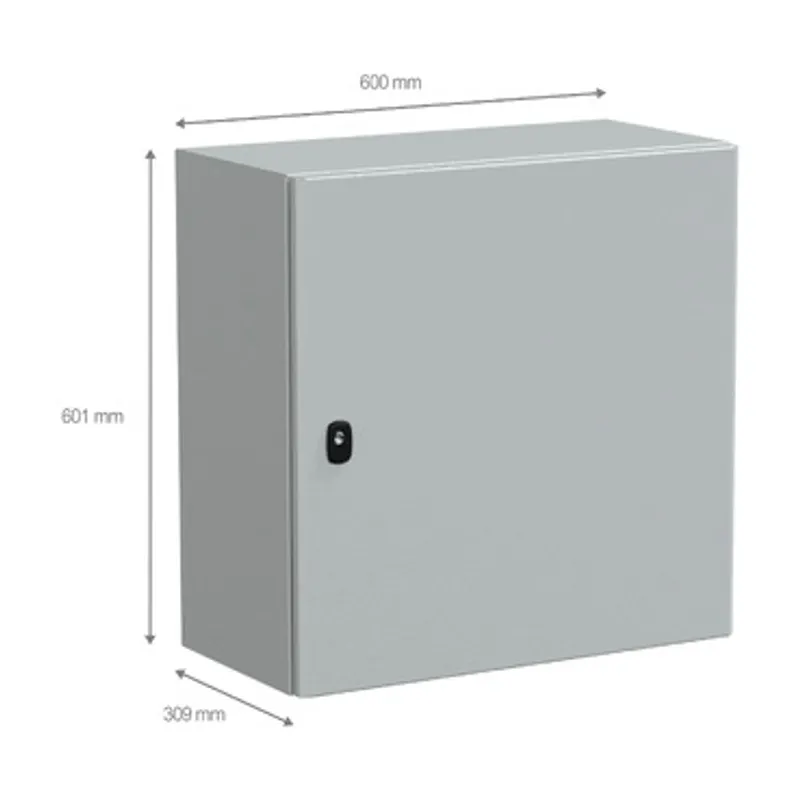

| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, GL, BV, DNV |
| Net weight | 16.57 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 62.000 cm × 61.500 cm × 35.000 cm (L × W × H), 16.500 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 201.000 cm (L × W × H), 214.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3D6630: frequently asked questions
When can NSYS3D6630 be shipped?
NSYS3D6630 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3D6630 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3D6630 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D6630, subject to availability and destination.
