Schneider Electric NSYS3D6830P

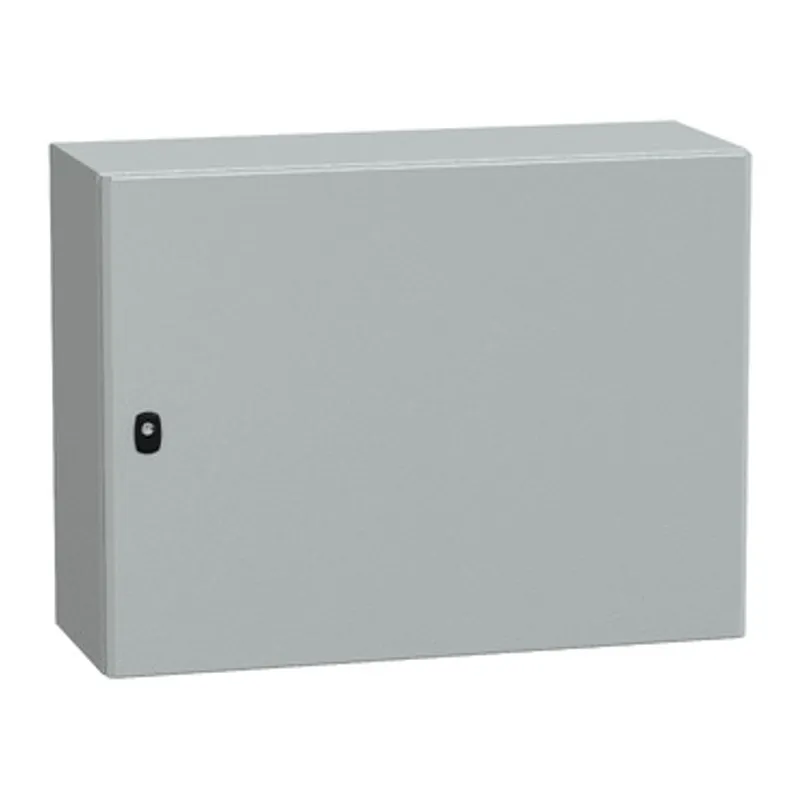

Wall mounted steel enclosure, PanelSeT S3D, plain door, with mounting plate, 600x800x300mm, IP66, IK10
- MPN
- NSYS3D6830P
- EAN
- 3606480159114
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D6830P?
Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed to provide superior protection in harsh environments It has a high resistance to dust and water with an IP66 rating (IEC60529) and is impact resistant with an IK10 rating (IEC62262) This enclosure has a nominal height, width and depth of 600mm, 800mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, one mounting plate, one plain door and a lock The door can be opened up to 120°, allowing easy access to the equipment inside
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 mounting plate, 1 door with lock |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, BV, cUL, DNV, GL |
| Net weight | 33 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 82.000 cm × 62.000 cm × 34.500 cm (L × W × H), 29.200 kg |
| Package 2 | 8 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 251.000 kg |
