Schneider Electric NSYS3D3315T

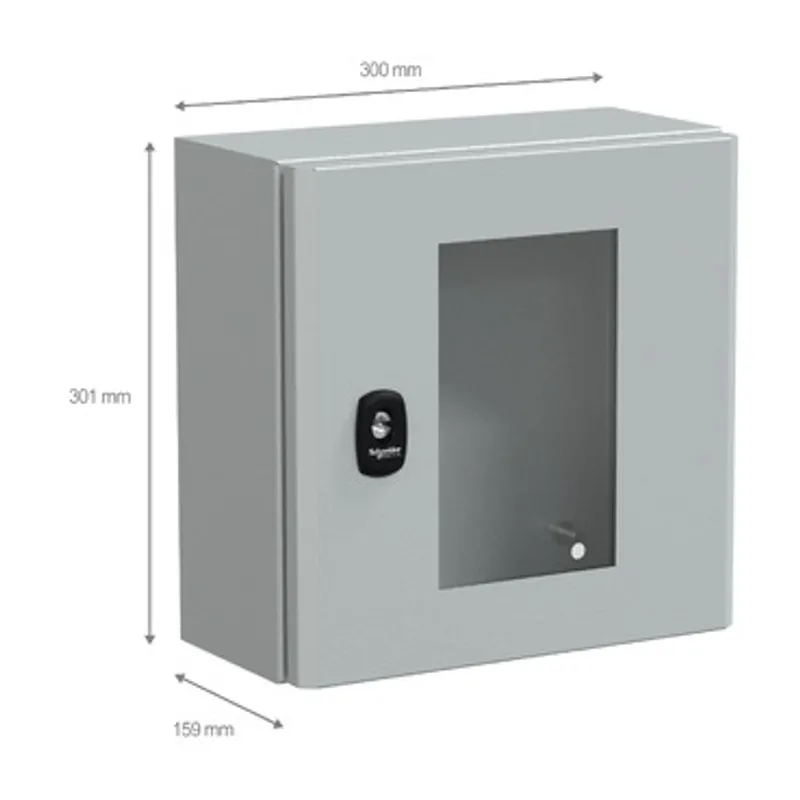

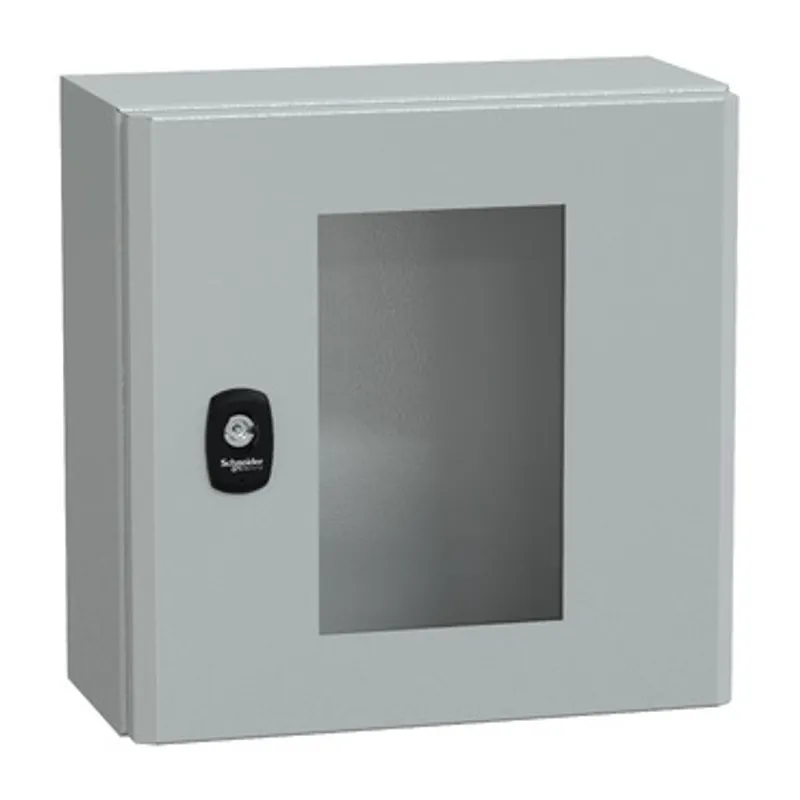

Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 300x300x150mm, IP66, IK08
- MPN
- NSYS3D3315T
- EAN
- 3606480159732
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D3315T?
Spacial S3D is a multi-purpose wall-mounting enclosure designed for use in harsh environments It has a nominal height, width and depth of 300mm, 300mm and 150mm respectively The enclosure is made of steel with a grey (RAL 7035) epoxy-polyester powder surface finish It has a single door with a 3mm double-bar lock which can be opened up to 120°, allowing easy access to the equipment inside The door and the cable gland plate are removable for maintenance purposes The enclosure has a NEMA 4X/13 rating and an IP66 rating (IEC 60529) for dust and water resistance, and an IK08 rating (IEC 62262) for high impact resistance The net weight of the enclosure is 4,04kg It is certified by DNV, UL, BV, cUL, LR and GL It has a gutter-shaped front rail double sheet thickness and a single piece body
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV, UL, BV, cUL, GL |
| Net weight | 4.04 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 31.000 cm × 32.000 cm × 18.500 cm (L × W × H), 4.025 kg |
| Package 2 | 90 PAM, 120.000 cm × 100.000 cm × 202.800 cm (L × W × H), 375.000 kg |
