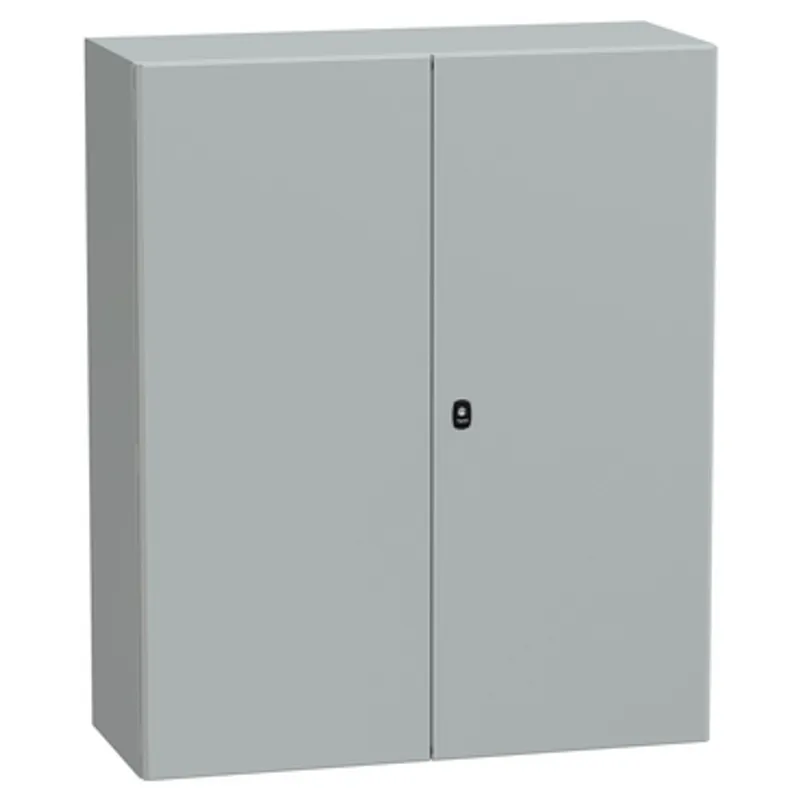

Schneider Electric NSYS3D121040DP

Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1200x1000x400mm, IP55, IK10

MPN
NSYS3D121040DP
EAN
3606480159992
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D121040DP?

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications and is suitable for use in harsh environments It has a nominal height, width and depth of 1200mm, 1000mm and 400mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two plain doors with a lock and a mounting plate The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1200 mm
Enclosure nominal width1000 mm
Enclosure nominal depth400 mm
Door typePlain
Mounting plate descriptionPlain
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 2 cable gland plate, 2 door with lock, 1 mounting plate
body typeSingle piece body, Gutter-shaped front rail double sheet thickness
Number of doorsFront face: 2 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsBV, UL, DNV, cUL, GL
Net weight78 kg
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP55 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 123.000 cm × 45.000 cm × 103.000 cm (L × W × H), 78.800 kg
Package 22 PAL, 123.000 cm × 100.000 cm × 116.000 cm (L × W × H), 171.400 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYS3D121040DP: frequently asked questions

When can NSYS3D121040DP be shipped?

NSYS3D121040DP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYS3D121040DP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYS3D121040DP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D121040DP, subject to availability and destination.
