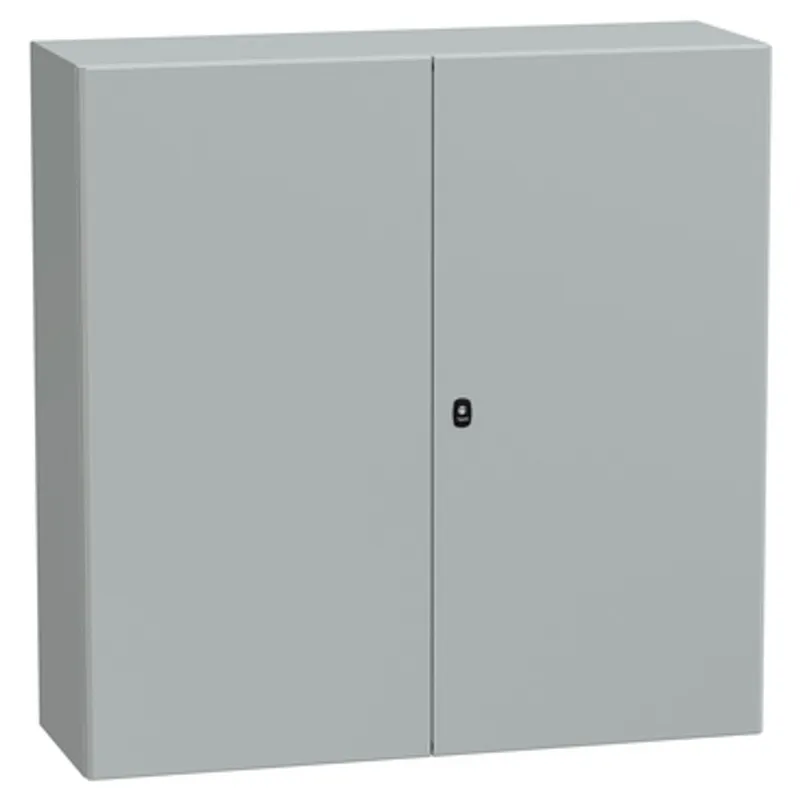

Schneider Electric NSYS3D121240D

Wall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1200x1200x400mm, IP55, IK10

MPN
NSYS3D121240D
EAN
3606480159961
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D121240D?

Spacial S3D steel wall-mounting enclosure for multi-purpose applications is designed for use in harsh environments It can withstand high impact due to its IK10 (IEC62262) rating and has a high resistance to dust and water with an IP55 rating (IEC60529) This enclosure has a nominal height, width and depth of 1200mm, 1200mm and 400mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1200 mm
Enclosure nominal width1200 mm
Enclosure nominal depth400 mm
Door typePlain
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 2 cable gland plate, 1 lock, 2 door
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 2 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialSteel
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsBV, cUL, DNV, GL, UL
Net weight86 kg
Electromagnetic compatibilityElectromagnetic field immunity test
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP55 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 45.500 cm × 121.000 cm × 133.000 cm (L × W × H), 84.000 kg
