Schneider Electric NSYS3D121030DT

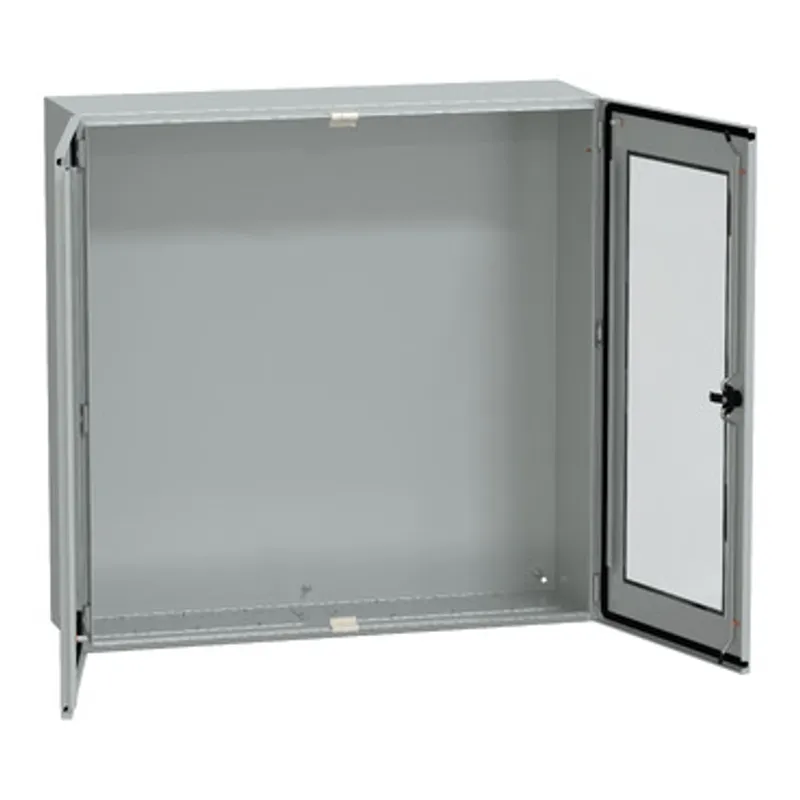

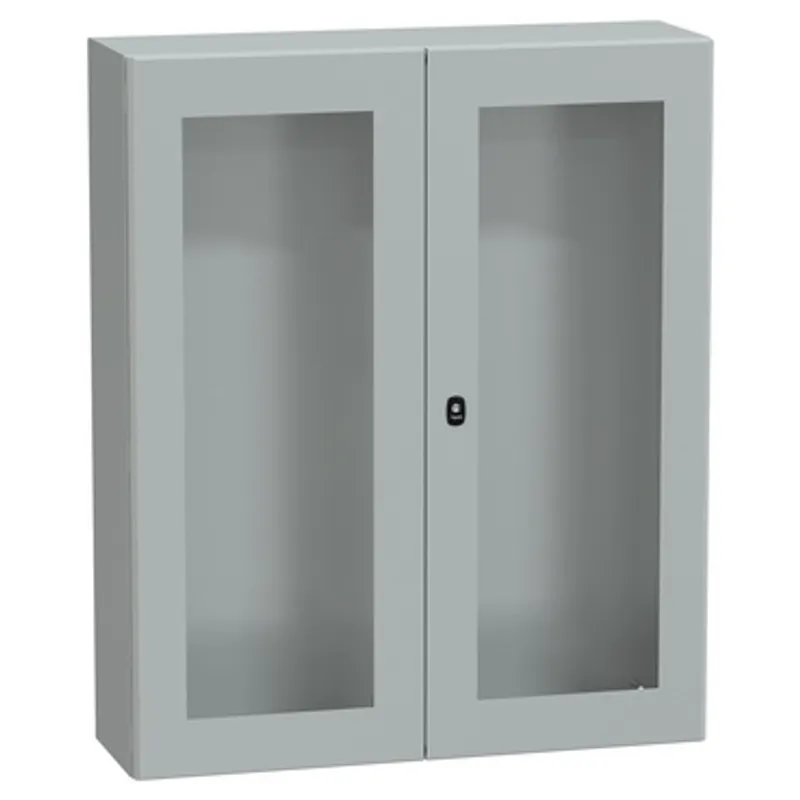

Wall mounted steel enclosure, PanelSeT S3D, double transparent door, without mounting plate, 1200x1000x300mm, IP55, IK08

MPN
NSYS3D121030DT
EAN
3606480160035
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D121030DT?

Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It is certified by cUL, BV, DNV, UL, GL and LR, and has a nominal height, width and depth of 1200mm, 1000mm and 300mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two glazed doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The net weight of the enclosure is 52kg

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1200 mm
Enclosure nominal width1000 mm
Enclosure nominal depth300 mm
Door typeGlazed
Mounting plate descriptionWithout mounting plate
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 2 cable gland plate, 1 lock, 2 door
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 2 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, BV, DNV, UL, GL
Net weight52 kg
Electromagnetic compatibilityElectromagnetic field immunity test
IK degree of protectionIK08 conforming to IEC 62262
IP degree of protectionIP55 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 122.600 cm × 102.400 cm × 35.400 cm (L × W × H), 52.000 kg
Package 22 P12, 120.000 cm × 80.000 cm × 120.000 cm (L × W × H), 113.000 kg
