Schneider Electric NSYS3D121230DP

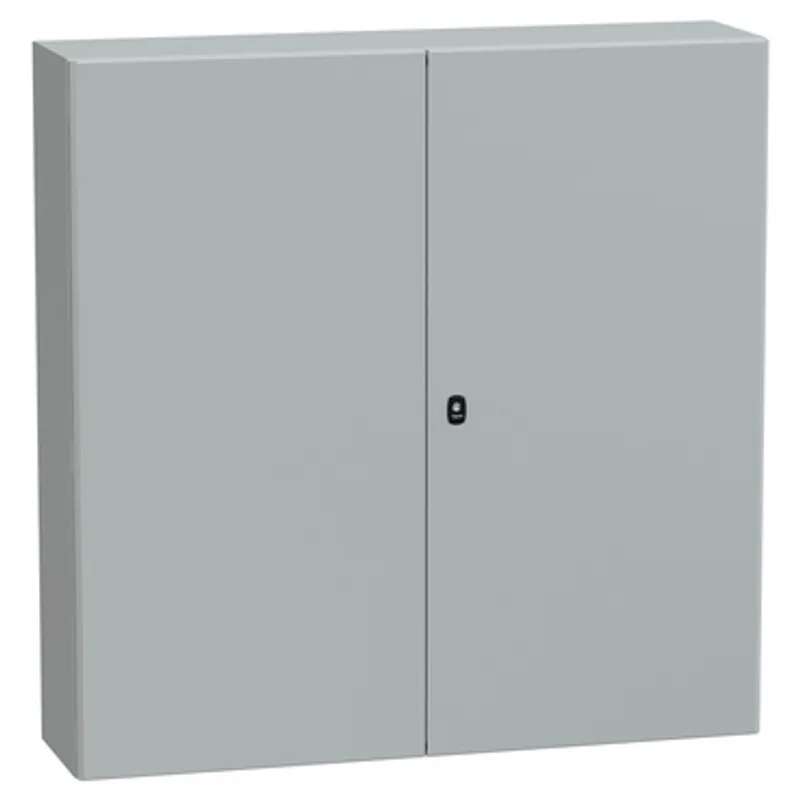

Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1200x1200x300mm, IP55, IK10

MPN
NSYS3D121230DP
EAN
3606480159978
Category
PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYS3D121230DP?

"PanelSeT S3D steel wall-mounting enclosure for multi-purpose applications is designed to withstand harsh environments" "It has a nominal height, width and depth of 1200mm, 1200mm and 300mm, respectively" "The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish" "It is certified by UL, cUL, GL, BV, DNV and LR" "The enclosure consists of a body, two cable gland plates, two plain doors with a lock and a mounting plate" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "Furthermore, it is possible to change the opening side of the doors (reversible)" "The doors have a three-point lock with a 3mm double-bar insert" "The doors, the cable gland plates and the mounting plate can be removed for maintenance purposes" "The net weight of the enclosure is 86kg" "It has an IK10 (IEC62262) rating and an IP55 rating (IEC60529)" "It also has a gutter-shaped front rail double sheet thickness and a single piece body" "The accessibility for operation is from the front"

Specifications

Specifications

RangePanelSeT
Product namePanelSeT S3D
ApplicationMulti-purpose
CategoryCompact enclosure
Enclosure nominal height1200 mm
Enclosure nominal width1200 mm
Enclosure nominal depth300 mm
Door typePlain
Mounting plate descriptionPlain
Type of gland plateStandard
Installation accessory typeWall-mounting
Device composition1 body, 2 cable gland plate, 2 door with lock, 1 mounting plate
body typeGutter-shaped front rail double sheet thickness, Single piece body
Number of doorsFront face: 2 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 3 mm double-bar
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws, Mounting plate by fixing element
MaterialEnclosure: steel, Mounting plate: galvanised steel
Surface finishEnclosure: epoxy-polyester powder
ColourEnclosure: grey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL, GL, BV, DNV
Net weight86 kg
IK degree of protectionIK10 conforming to IEC 62262
IP degree of protectionIP55 conforming to IEC 60529
CoverageCore product

Packaging

Package 11 PCE, 122.500 cm × 120.000 cm × 35.500 cm (L × W × H), 86.600 kg
Package 22 PAL, 122.500 cm × 80.000 cm × 138.000 cm (L × W × H), 187.000 kg
