set of 2 Spacial SF 180° hinges - M8 screws
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.42 kg |
Shipping & availability
When can NSYRSWH180 be shipped?
NSYRSWH180 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYRSWH180 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYRSWH180 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYRSWH180, subject to availability and destination.

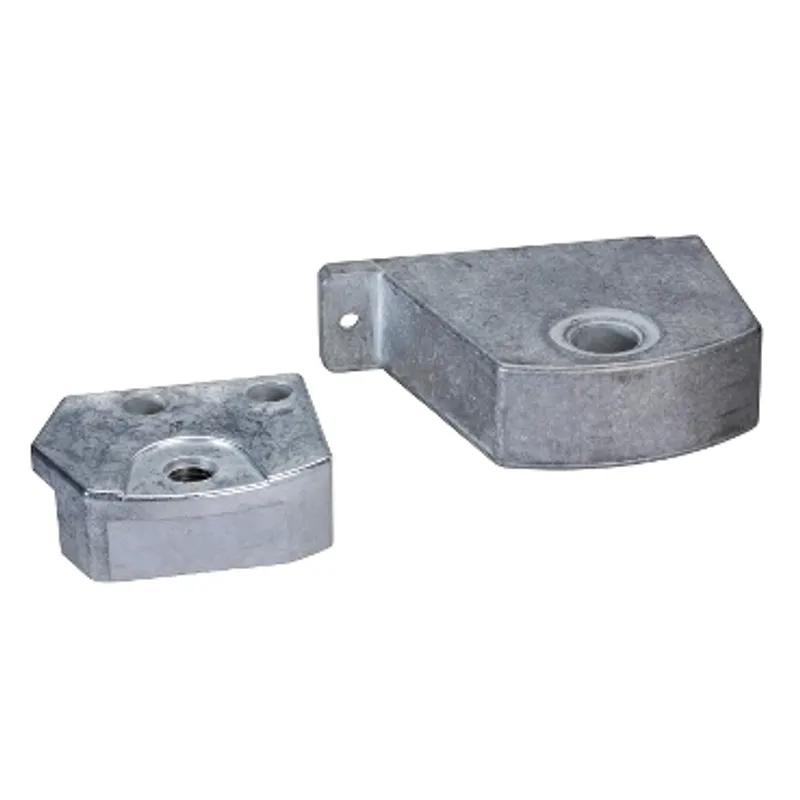

Schneider Electric set of 2 Spacial SF 180° hinges - M8 screws, manufacturer part number NSYRSWH180. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | Spacial |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Hinge |
| Application | Electronic application, Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting support | Swing rack |
| Range compatibility | Spacial Spacial SF, Spacial Spacial SM |
| Device composition | Fixing elements, 2 hinge |
| Quantity per set | Set of 1 |
| Material | Zamak 5 |
| Fixing mode | By screws: 19" swing rack |
| Operating angle | 180 ° |
| Height | 38 mm |
| Width | 140 mm |
| Depth | 155 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 14.000 cm |
| Package 1 Length | 15.500 cm |
| Package 1 Weight | 1.420 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 50.000 cm |
| Package 2 Width | 80.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 302.000 kg |
| Warranty | 18 months |
