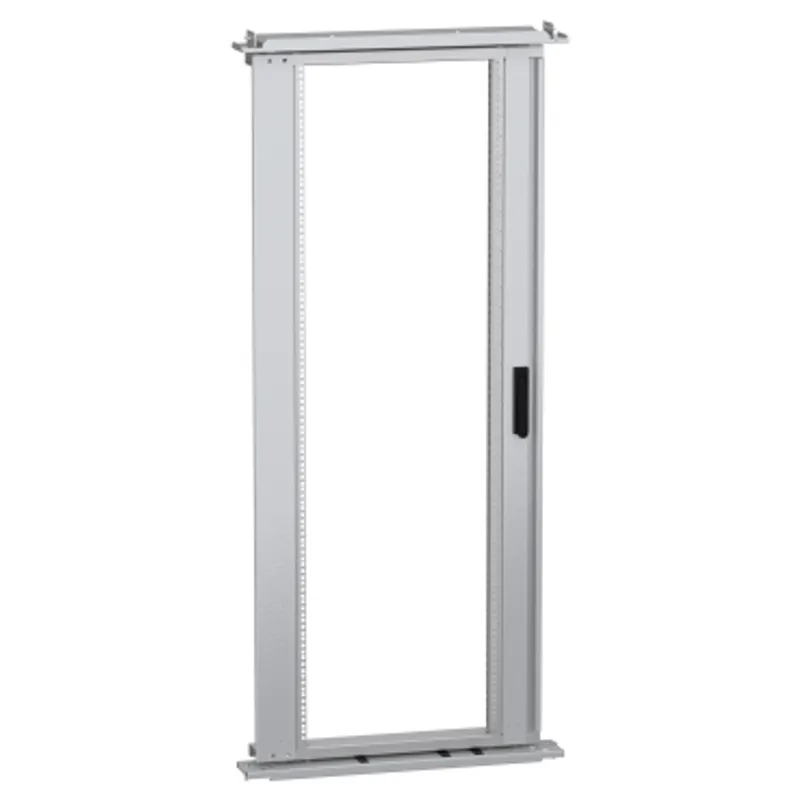

Schneider Electric NSYRSWC36
PanelSeT SF/SM 19" swing rack - 1800x800 mm - 36 modules
- MPN
- NSYRSWC36
- EAN
- 3606480067259
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYRSWC36?

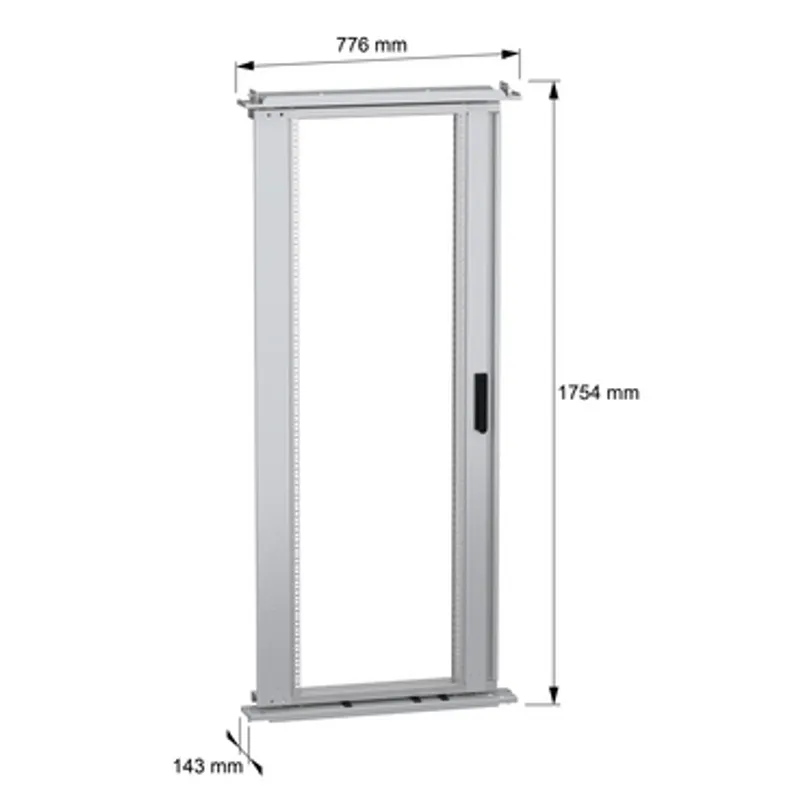

Swing centred racks allow mounting rackable electronic equipment with 19" server racks in PanelSeT SF and PanelSeT SM enclosures The width is 800mm The height is 1800mm The depth is 1701mm Supports mounting of 36 units Depth adjustable in steps of 25mm Opening is reversible, opening angle is 120 ° The kit supplied with fixing elements, 2 800mm swing rack supports, 1 19" swing rack and 2 side plates with ball-lock handles The strips are manufactured from side steel (RAL 7035) The product is be mounted on structure of enclosure Anti-corrosion protection is ensured by zinc coating The permanent permissible load is 3,75kg per unit with a maximum of 150kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 1800 mm |
| Rack type | Swing |
| Mounting location | On structure of enclosure |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | Fixing elements, 2 800 mm swing rack supports, 1 19" swing rack, 2 side plates with ball-lock handle |
| Quantity per set | Set of 1 |
| Number of units 19" | 36 |
| Rack coverage | Complete |
| Rack position | Centered |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Handle with ball lock |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Colour | Side plate: grey (RAL 7035) |
| Permanent permissible load | 3.75 kg per unit with a maximum of 150 kg |
| Opening of the 19" racks | Reversible 120 ° |
| Height | 1800 mm |
| Width | 800 mm |
| Depth | 1701 mm |
Packaging
| Package 1 | 1 PCE, 173.000 cm × 74.000 cm × 13.000 cm (L × W × H), 26.000 kg |
| Package 2 | 10 PAL, 210.000 cm × 120.000 cm × 92.000 cm (L × W × H), 290.000 kg |
