Schneider Electric NSYRSW645
PanelSeT SF 19" swing rack - 2200x600 mm - 45 modules
- MPN
- NSYRSW645
- EAN
- 3606480067297
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

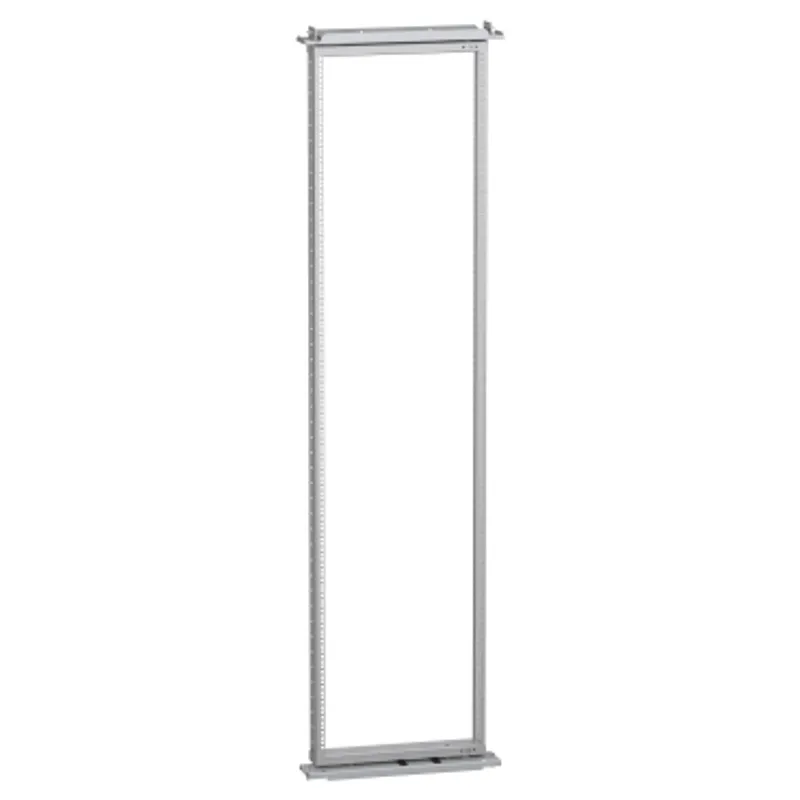

What is the Schneider Electric NSYRSW645?
Swing without panels racks allow mounting rackable electronic equipment with 19" server racks in PanelSeT SF and PanelSeT SM enclosures The width is 600mm The height is 2200mm Supports mounting of 45 units It is possible to fasten 19" swing rack support Depth adjustable in steps of 25mm Opening is reversible, opening angle is 120 ° The kit supplied with 1 rack The strips are manufactured from steel The product is be mounted on structure of enclosure Anti-corrosion protection is ensured by zinc coating The permanent permissible load is 3kg per unit
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - |
| Rack type | Swing |
| Mounting location | On structure of enclosure |
| Mounting support | 19" swing rack support |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | 1 rack |
| Number of units 19" | 45 |
| Rack coverage | Complete |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Lock 5 mm double bar |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Permanent permissible load | 3 kg per unit |
| Opening of the 19" racks | Reversible 120 ° |

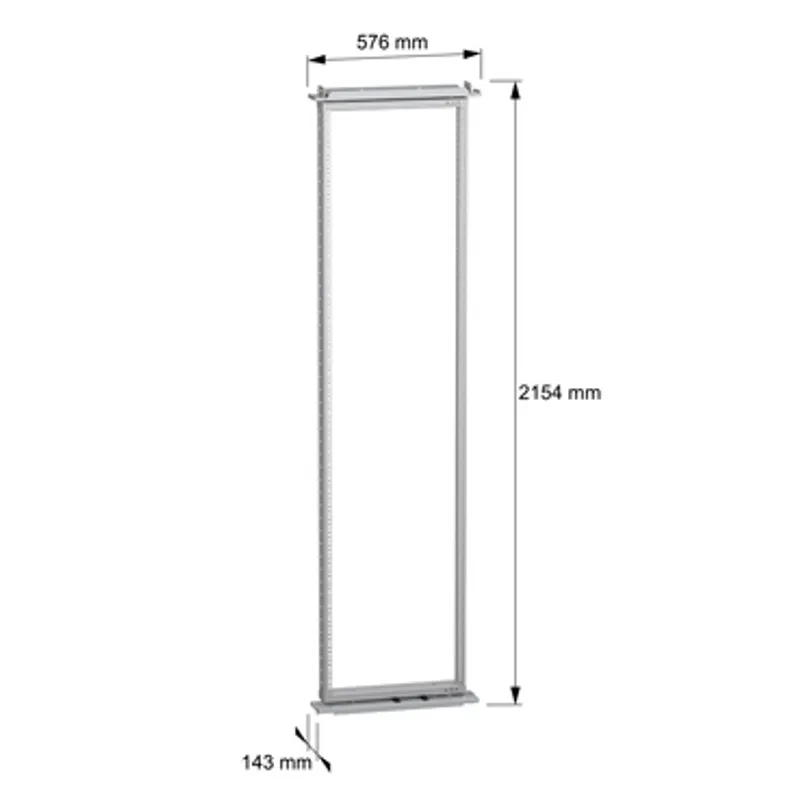

| Height | 2200 mm |
| Width | 600 mm |
Packaging
| Package 1 | 1 PCE, 207.000 cm × 51.500 cm × 10.000 cm (L × W × H), 17.000 kg |
| Package 2 | 10 PAL, 210.000 cm × 120.000 cm × 69.500 cm (L × W × H), 202.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYRSW645: frequently asked questions
When can NSYRSW645 be shipped?
NSYRSW645 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYRSW645 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYRSW645 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYRSW645, subject to availability and destination.
