Schneider Electric NSYRSWP12

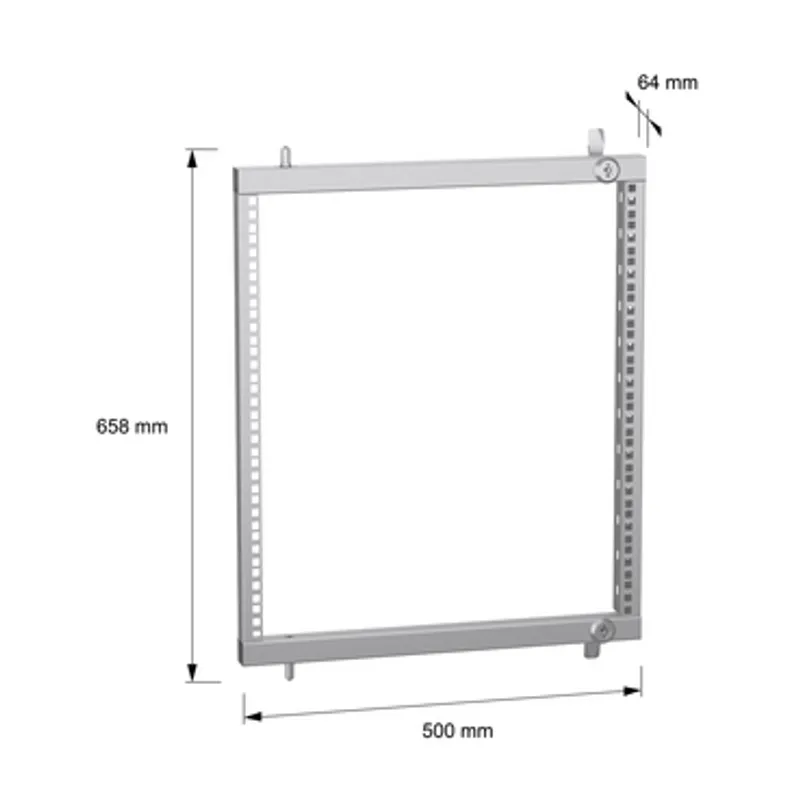

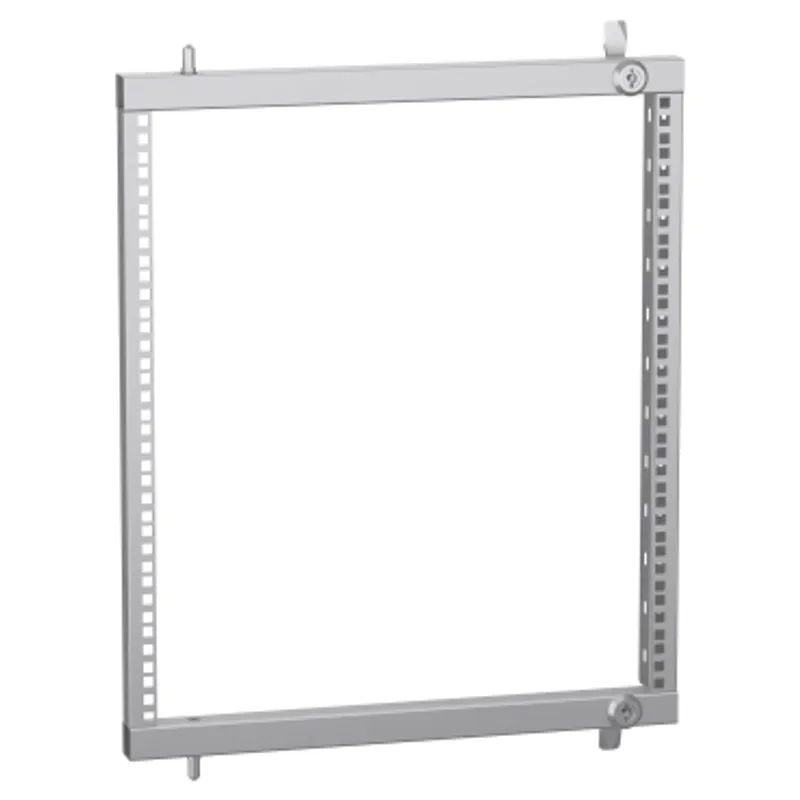

PanelSeT SF/SM partial 19" swing rack - 601 mm
- MPN
- NSYRSWP12
- EAN
- 3606480067341
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYRSWP12?
Partial swing racks allow mounting rackable electronic equipment with 19" server racks in PanelSeT SF and PanelSeT SM enclosures The width is 600mm The height is 601mm The depth is 601mm Supports mounting of 12 units It is possible to fasten partial 19" swing rack support Depth adjustable in steps of 25mm Opening is reversible, opening angle is 120 ° The kit supplied with 1 rack The strips are manufactured from steel The product is be mounted on front of enclosure Anti-corrosion protection is ensured by zinc coating The permanent permissible load is 2kg per unit
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - H: 601 mm |
| Rack type | Swing |
| Mounting location | Front of enclosure |
| Mounting support | Partial 19" swing rack support |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | 1 rack |
| Number of units 19" | 12 |
| Rack coverage | Partial |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Lock 5 mm double bar |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Permanent permissible load | 2 kg per unit |
| Opening of the 19" racks | Reversible 120 ° |
| Height | 601 mm |
| Width | 600 mm, 800 mm |
| Depth | 601 mm |
Packaging
| Package 1 | 1 PCE, 61.500 cm × 51.500 cm × 7.500 cm (L × W × H), 3.440 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 105.000 cm (L × W × H), 82.000 kg |
