Schneider Electric NSYRSW636

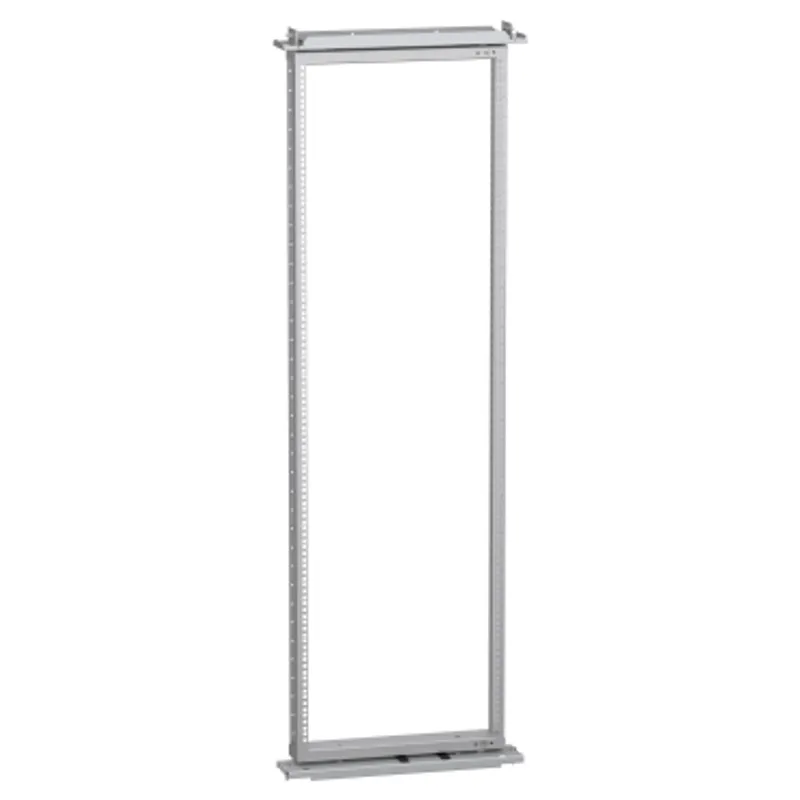

PanelSeT SF/SM 19" swing rack - 1800x600 mm - 36 modules
- MPN
- NSYRSW636
- EAN
- 3606480067242
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYRSW636?
Swing without panels racks allow mounting rackable electronic equipment with 19" server racks in PanelSeT SF and PanelSeT SM enclosures The width is 600mm The height is 1800mm Supports mounting of 36 units It is possible to fasten 19" swing rack support Depth adjustable in steps of 25mm Opening is reversible, opening angle is 120 ° The kit supplied with 1 rack The strips are manufactured from steel The product is be mounted on structure of enclosure Anti-corrosion protection is ensured by zinc coating The permanent permissible load is 3kg per unit
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application |
| For enclosure nominal dimensions | - |
| Rack type | Swing |
| Mounting location | On structure of enclosure |
| Mounting support | 19" swing rack support |
| Range compatibility | PanelSeT PanelSeT SF, PanelSeT PanelSeT SM |
| Device composition | 1 rack |
| Number of units 19" | 36 |
| Rack coverage | Complete |
| Material | Steel |
| Enclosure/cubicle description | Floor-standing enclosure |
| Surface finish | Zinc coated |
| Lock type | Lock 5 mm double bar |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth every 25 mm |
| Permanent permissible load | 3 kg per unit |
| Opening of the 19" racks | Reversible 120 ° |

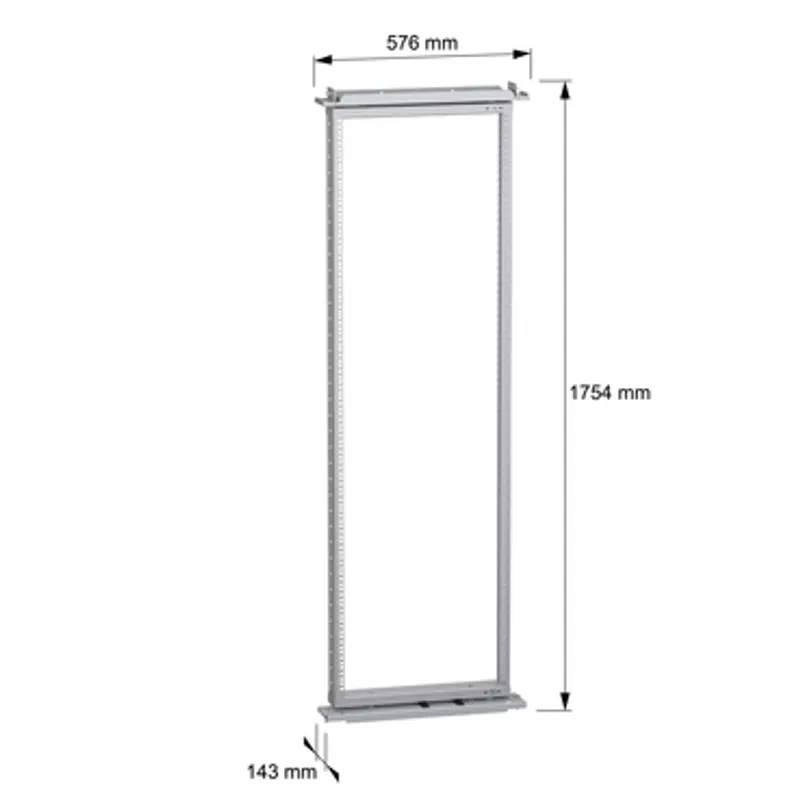

| Height | 1800 mm |
| Width | 600 mm |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 52.000 cm × 168.000 cm (L × W × H), 17.400 kg |
| Package 2 | 10 P2M, 120.000 cm × 200.000 cm × 68.000 cm (L × W × H), 206.000 kg |
