NSYPHDZT776PPanelSeT PHD outdoor heavy duty - enclosure H843 W750 D620 IP55 plain door
Schneider Electric NSYPIN126
Internal door for PanelSeT WM encl.H1200xW600 steel, RAL7035.Adjustable in depth
- MPN
- NSYPIN126
- EAN
- 3606480168598
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

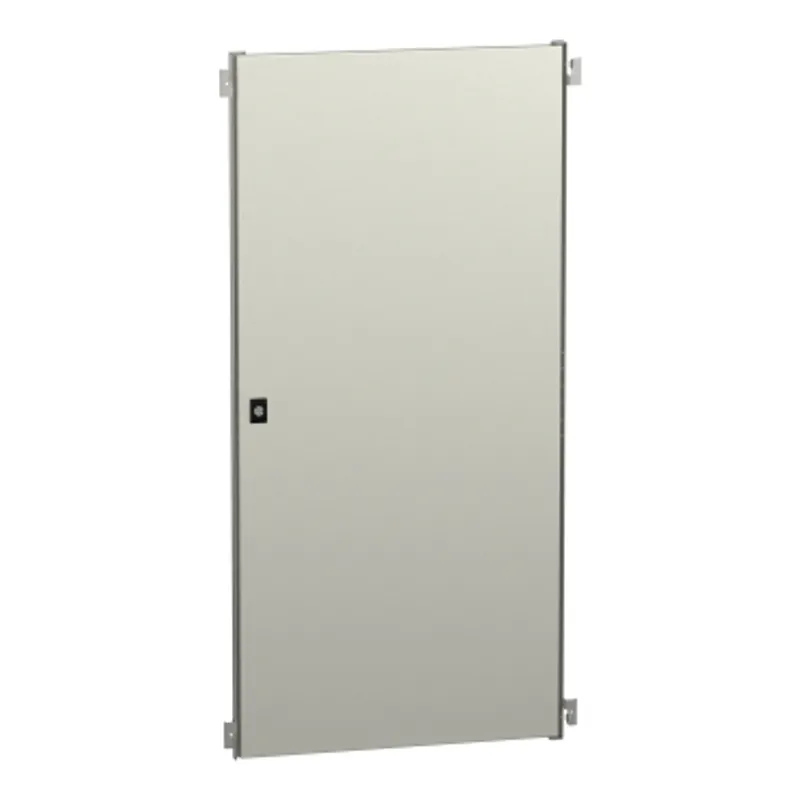

What is the Schneider Electric NSYPIN126?
Internal plain door for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X The product is to be mounted on step slide and front side of the enclosure The nominal width is 600mm The nominal height is 1200mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66 Hinges left or right pitch 25mm (on step slides) Maximum load is 30 kg/m² The door has 1 locks with 3mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Step slide, Front side |
| Range compatibility | PanelSeT PanelSeT CRN, PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X |
| Device composition | 1 door, 4 fixing brackets, 2 mounting uprights |
| Material | Door: sheet steel |
| Colour | All faces: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Adjustment | Pitch 25 mm (on step slides) |
| Door type | Internal plain |
| Door opening side | Reversible |
| Maximum load | 30 kg/m² |
| Height | Nominal: 1200 mm |
| Width | Nominal: 600 mm |
| Net weight | 11.1 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 4.500 cm × 61.000 cm × 119.500 cm (L × W × H), 11.098 kg |
| Package 2 | 15 PAM, 120.000 cm × 100.000 cm × 77.000 cm (L × W × H), 179.000 kg |
