Schneider Electric NSYPIN108

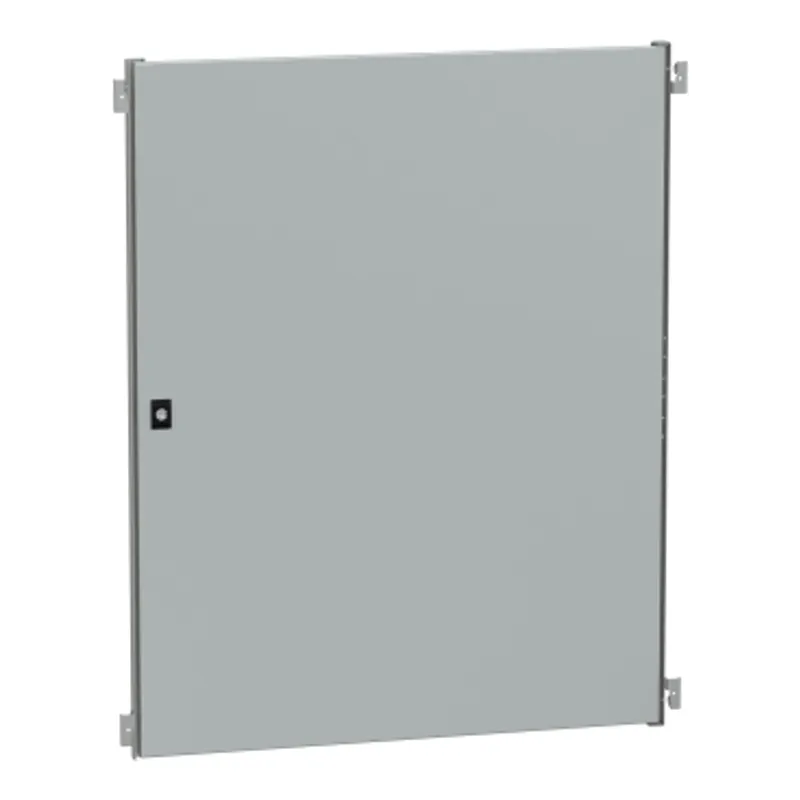

Internal door for PanelSeT WM encl.H1000xW800 steel, RAL7035.Adjustable in depth
- MPN
- NSYPIN108
- EAN
- 3606480168604
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPIN108?
Internal plain door for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X The product is to be mounted on step slide and front side of the enclosure The nominal width is 800mm The nominal height is 1000mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66 Hinges left or right pitch 25mm (on step slides) Maximum load is 30 kg/m² The door has 1 locks with 3mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Step slide, Front side |
| Range compatibility | PanelSeT CRN, PanelSeT S3D, PanelSeT S3X |
| Device composition | 1 door, 4 fixing brackets, 2 mounting uprights |
| Material | Door: sheet steel |
| Colour | All faces: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Adjustment | Pitch 25 mm (on step slides) |
| Door type | Internal plain |
| Door opening side | Reversible |
| Maximum load | 30 kg/m² |
| Height | Nominal: 1000 mm |
| Width | Nominal: 800 mm |
| Net weight | 10 kg |
Packaging
| Package 1 | 1 PCE, 97.000 cm × 76.500 cm × 5.000 cm (L × W × H), 11.912 kg |
| Package 2 | 18 PAM, 120.000 cm × 100.000 cm × 103.000 cm (L × W × H), 227.000 kg |
