Schneider Electric NSYPIN128

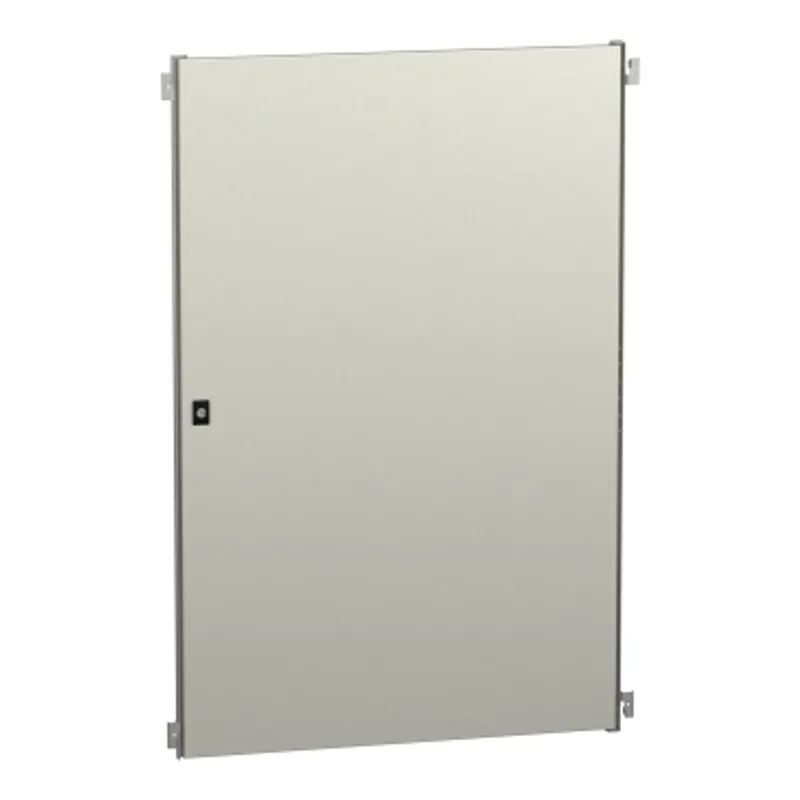

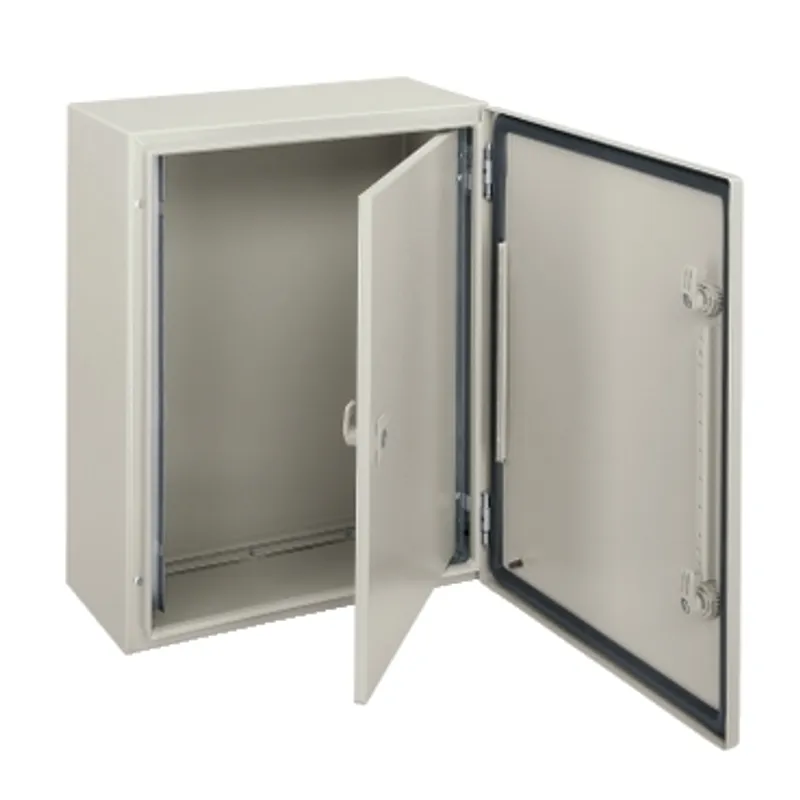

Internal door for PanelSeT WM encl.H1200xW800 steel, RAL7035.Adjustable in depth
- MPN
- NSYPIN128
- EAN
- 3606480168581
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPIN128?
Internal plain door for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X The product is to be mounted on front side and step slide of the enclosure The nominal width is 800mm The nominal height is 1200mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66 Hinges left or right pitch 25mm (on step slides) Maximum load is 30 kg/m² The door has 1 locks with 3mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Front side, Step slide |
| Range compatibility | PanelSeT PanelSeT CRN, PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X |
| Device composition | 1 door, 4 fixing brackets, 2 mounting uprights |
| Material | Door: sheet steel |
| Colour | All faces: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Adjustment | Pitch 25 mm (on step slides) |
| Door type | Internal plain |
| Door opening side | Reversible |
| Maximum load | 30 kg/m² |
| Height | Nominal: 1200 mm |
| Width | Nominal: 800 mm |
| Net weight | 13.6 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 4.500 cm × 80.500 cm × 121.000 cm (L × W × H), 14.000 kg |
| Package 2 | 18 PAL, 121.500 cm × 100.000 cm × 90.000 cm (L × W × H), 264.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPIN128: frequently asked questions
When can NSYPIN128 be shipped?
NSYPIN128 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPIN128 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPIN128 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPIN128, subject to availability and destination.
