Schneider Electric NSYPIN106

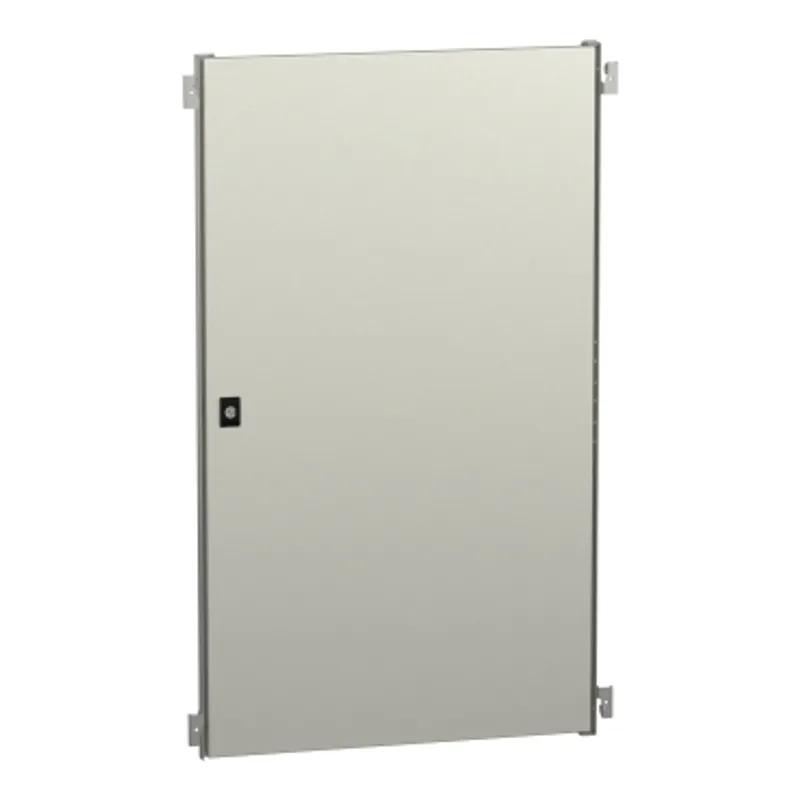

Internal door for PanelSeT WM encl.H1000xW600 steel, RAL7035.Adjustable in depth
- MPN
- NSYPIN106
- EAN
- 3606480168611
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYPIN106?
Internal plain door for PanelSeT CRN, PanelSeT S3D and PanelSeT S3X The product is to be mounted on step slide and front side of the enclosure The nominal width is 600mm The nominal height is 1000mm The door is made of sheet steel (RAL 7035) and has a degree of IP protection IP66 Hinges left or right pitch 25mm (on step slides) Maximum load is 30 kg/m² The door has 1 locks with 3mm double bar
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Door |
| Application | Multi-purpose |
| For enclosure nominal dimensions | - |
| Mounting location | Step slide, Front side |
| Range compatibility | PanelSeT PanelSeT CRN, PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X |
| Device composition | 1 door, 4 fixing brackets, 2 mounting uprights |
| Material | Door: sheet steel |
| Colour | All faces: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Lock type | Lock 3 mm double bar |
| Number of locks | 1 |
| Adjustment | Pitch 25 mm (on step slides) |
| Door type | Internal plain |
| Door opening side | Reversible |
| Maximum load | 30 kg/m² |
| Height | Nominal: 1000 mm |
| Width | Nominal: 600 mm |
| Net weight | 7.5 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 97.000 cm × 56.500 cm × 5.000 cm (L × W × H), 8.020 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 88.000 cm (L × W × H), 254.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYPIN106: frequently asked questions
When can NSYPIN106 be shipped?
NSYPIN106 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYPIN106 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYPIN106 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPIN106, subject to availability and destination.
