PanelSeT PHD outdoor heavy duty - enclosure H843 W750 D620 IP55 plain door
Discontinued by Schneider Electric — we can still source the original NSYPHDZT776P (new, used or refurbished, subject to availability). Request a quote below.
Schneider Electric PanelSeT PHD outdoor heavy duty - enclosure H843 W750 D620 IP55 plain door, manufacturer part number NSYPHDZT776P. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
| Range | PanelSeT |
| Product | PHD |
| Application | Outdoor heavy duty |
| Certification | UL conforming to UL 508 A 2007, Bureau Veritas conforming to IEC 61969-3 2011, Bureau Veritas conforming to IEC 61439-5 2010, DEKRA conforming to IEC 62208 2011 |
| Enclosure type | Multi-purpose |
| Category | Suitable enclosure |
| Version | PHDZT |
| Enclosure height with canopy | 843 mm |
| Canopy height | 38 mm |
| Enclosure width | 750 mm |
| Enclosure depth | 620 mm |
| Enclosure mounting | Floor-standing |
| Device composition | 1 door in polyester double reinforced with fibreglass, 1 door retainer in steel with anti-corrosive coating, 1 document pocket in plastic A4 format, 1 cable gland plate in aluminium, 1 body with integrated plinth in polyester double reinforced with fibreglass, 1 canopy in polyester reinforced with fibreglass |
| Body type | Sealed assembled body |
| Door type | Plain |
| Number of doors | 1 door(s) |
| Door opening side | Right or left (120 °) |
| Lock type | 2 points lock, handle with 1242E key lock and padlock |
| Accessibility for operation | Bottom, Front |
| Maximum lifting load | 500 kg |
| Removable parts | Door by hinges, Canopy by fixing element, Cable gland plate by fixing element |
| Material | Polyester double reinforced with fibreglass |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, IEC 61969-3, IEC 61439-5, UL 508 A |
| Electrical insulation class | Class II conforming to IEC 61439-1 2011 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 (plain door) |
| Mechanical robustness | Vandal-proof conforming to EN/IEC 61439-5 version 2010 |
| Fire resistance | 960 °C conforming to IEC 62208 |
| Ambient air temperature for operation | -45…80 °C conforming to IEC 61969-3 class 1 |
| Ambient air temperature for storage | -25…40 °C |
| Corrosion withstand | 90…100 % conforming to ISO 12944 C4H |
| Environmental withstand | Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011, Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011, Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013, Formation of ice and frost: class 1 conforming to IEC 61969-3:2011, Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011, : class 1 conforming to IEC 61969-3:2011 |
| Thermal management options | Fan: 1500 W for a maximum noise level of 60 dB, With external cooling 4000 W, Natural: 565 W at -25 °C, Natural: 247 W at 20 °C, Natural: 106 W at 40 °C, According to cooling architecture 1500 W |
| Package 1 | 1 PCE, 65.000 cm × 78.000 cm × 81.500 cm (L × W × H), 37.000 kg |
No matching specifications
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Yes. Schneider Electric has discontinued the NSYPHDZT776P, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
NSYPHDZT776P is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Yes — mention it when you request a quote for NSYPHDZT776P and we'll include express shipping options in our reply.
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYPHDZT776P, subject to availability and destination.

PanelSeT PHD outdoor heavy duty - enclosure H2093 W750 D420 IP55 plain door

PanelSeT PHD outdoor heavy duty-enclosure H843 W750 D420 IP55 anti-posting door

PanelSeT PHD outdoor heavy duty - enclosure H843 W750 D420 IP55 plain door

PanelSeT PHD outdoor heavy duty-enclosure H843 W750 D620 IP55 anti-posting door


Internal door for PanelSeT WM encl.H1000xW600 steel, RAL7035.Adjustable in depth

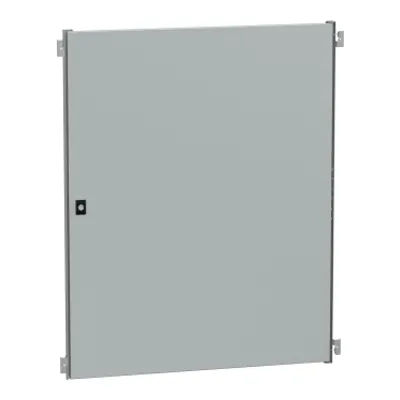

Internal door for PanelSeT WM encl.H1000xW800 steel, RAL7035.Adjustable in depth

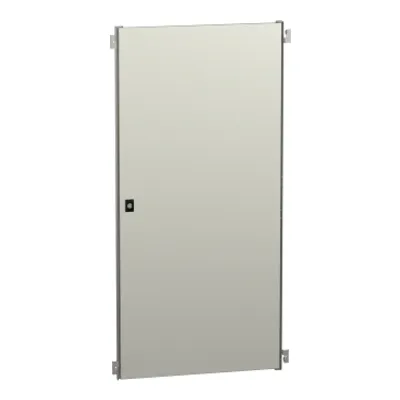

Internal door for PanelSeT WM encl.H1200xW600 steel, RAL7035.Adjustable in depth
