Schneider Electric NSYDLCR135

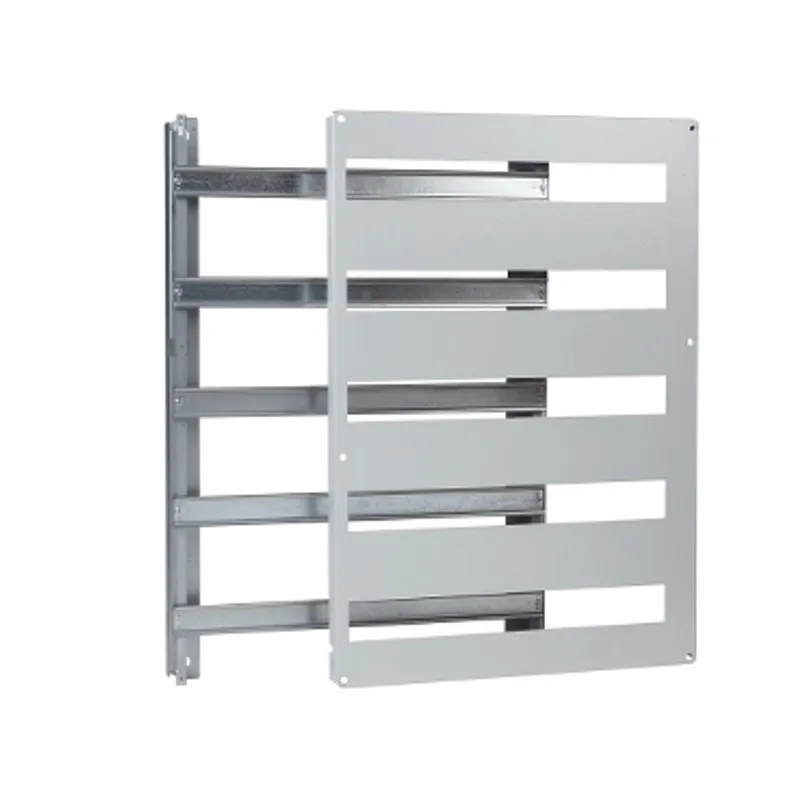

Modular chassis DLCR type for PanelSeT WM steel enclosure, 135 modules, H800xW600

MPN
NSYDLCR135
EAN
3606480162626
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYDLCR135?

DL chassis for PanelSeT S3X and PanelSeT CRN enclosures The chassis is to be fixed on front of enclosure by fixing elements - on back with supports location The width is 555mm The height is 755mm The depth is 110mm Number of 18mm modules is 135 (1 module = 2 steps = 18 mm) Number of horizontal rows is 5 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 5 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 front panel and 5 35mm DIN rails Anti-corrosion protection is ensured by an polyester powder coating

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
ApplicationMulti-purpose, Modular distribution application
Product or component typeChassis
Device short nameDL
For enclosure nominal dimensions-
Mounting locationFront of enclosure
Range compatibilitySpacial Spacial S3X
Device composition1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 front panel, 5 35 mm DIN rail
Quantity per setSet of 1
MaterialSteel
ColourFront panel: grey (RAL 7035)
Surface finishPolyester powder
Fixing modeBy fixing element - on back with supports location
AdjustmentIn height from 40 to 85 mm for DIN rail
Number of horizontal rows5
Total number of 18 mm modules135
Type of front platePlain and cut-out plates
Number of cut-out5 cut-outs
Height755 mm
Width555 mm
Depth110 mm
CoverageCore product

Packaging

Package 11 PCE, 81.000 cm × 57.500 cm × 6.000 cm (L × W × H), 6.000 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 105.000 cm (L × W × H), 193.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYDLCR135: frequently asked questions

When can NSYDLCR135 be shipped?

NSYDLCR135 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYDLCR135 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYDLCR135 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLCR135, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYDLA66G – Modular distribution chassis 66 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75
Schneider Electric
NSYDLA66G

Modular distribution chassis 66 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75

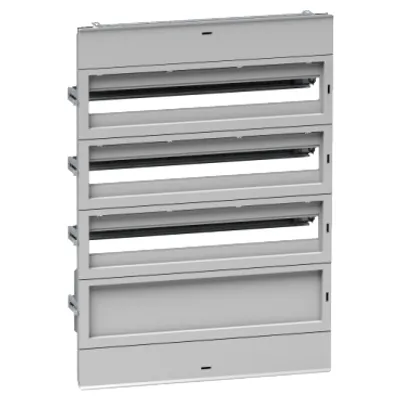

Schneider Electric NSYDLA84G – Modular distribution chassis 84 modules for NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86
