Schneider Electric NSYDLA88G

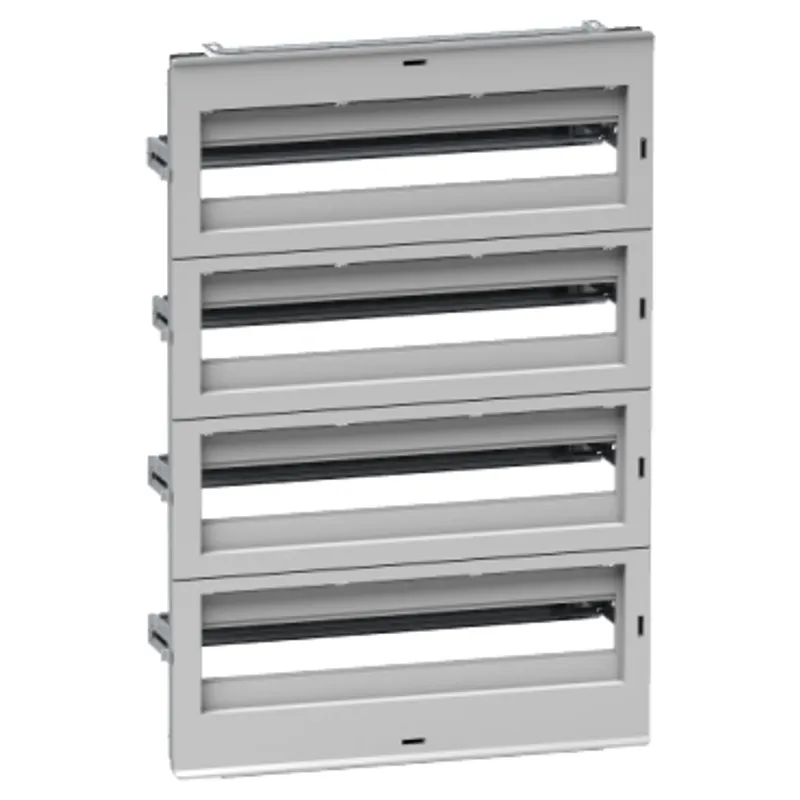

Modular distribution chassis 88 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75
- MPN
- NSYDLA88G
- EAN
- 3606480773877
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDLA88G?
DLA chassis for PanelSeT S3D, PanelSeT CRN, PanelSeT S3X and PanelSeT PLM enclosures The chassis is to be fixed on front of enclosure by fixing elements with supports location The width is 460mm The height is 680mm Number of 18mm modules is 86 (1 module = 2 steps = 18 mm) Number of horizontal rows is 4 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The front panel is made from self-extinguishing insulating and chassis structure and rails are made from steel The front has a grey (RAL 7035) color Number of cut-outs is 4 The kit is made up of 1 chassis structure, 4 front panels with 35mm DIN rails, 2 finish covers and 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose, Modular distribution application |
| Product or component type | Chassis |
| Device short name | DLA |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Device composition | 1 chassis structure, 4 front panels with 35 mm DIN rail, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm² |
| Quantity per set | Set of 1 |
| Material | Front panel: self-extinguishing insulating, Chassis structure and rails: steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element - on front with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 4 |
| Total number of 18 mm modules | 86 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 4 cut-outs |
| Height | 680 mm |
| Width | 460 mm |
Packaging
| Package 1 | 1 PCE, 68.000 cm × 49.000 cm × 14.500 cm (L × W × H), 6.114 kg |
| Package 2 | 24 PAM, 120.000 cm × 100.000 cm × 124.000 cm (L × W × H), 158.730 kg |
