Schneider Electric NSYDLCR48

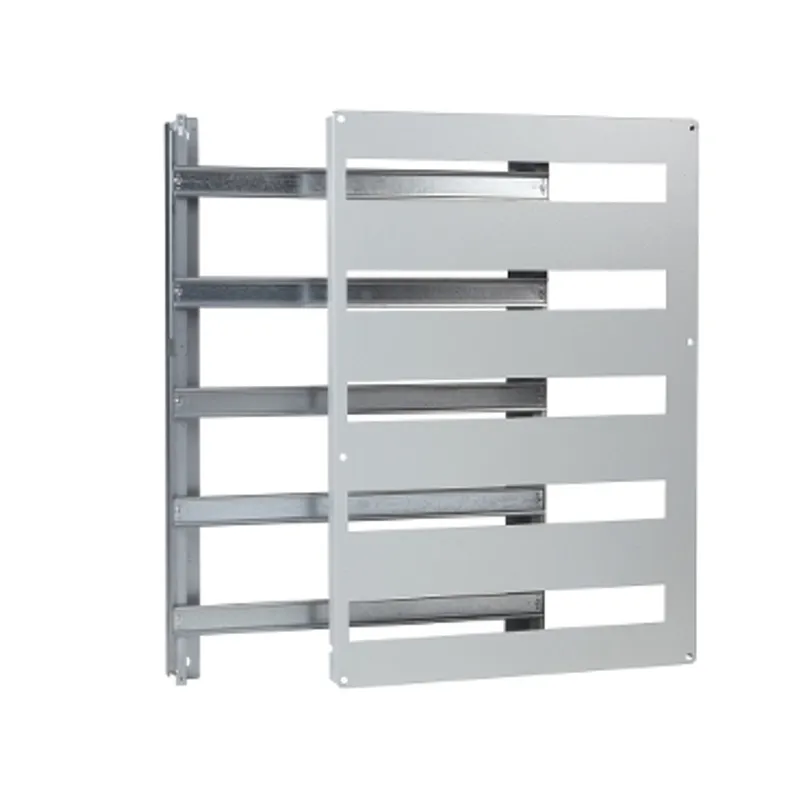

Modular chassis DLCR type for PanelSeT WM steel enclosure, 48 modules, H500xW400
- MPN
- NSYDLCR48
- EAN
- 3606480162664
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDLCR48?
DL chassis for PanelSeT S3X and PanelSeT CRN enclosures The chassis is to be fixed on front of enclosure by fixing elements - on back with supports location The width is 355mm The height is 455mm The depth is 110mm Number of 18mm modules is 48 (1 module = 2 steps = 18 mm) Number of horizontal rows is 3 The depth of the chassis can be adjusted in height from 40 to 85mm for DIN rail The product is made from grey steel (RAL 7035) The front has a grey (RAL 7035) color Number of cut-outs is 3 The kit is made up of 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 front panel and 3 35mm DIN rails Anti-corrosion protection is ensured by an polyester powder coating
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application, Multi-purpose |
| Product or component type | Chassis |
| Device short name | DL |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | Spacial Spacial S3X |
| Device composition | 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 front panel, 3 35 mm DIN rail |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Front panel: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Fixing mode | By fixing element - on back with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 3 |
| Total number of 18 mm modules | 48 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 3 cut-outs |
| Height | 455 mm |
| Width | 355 mm |
| Depth | 110 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 48.500 cm × 38.000 cm × 5.500 cm (L × W × H), 2.602 kg |
| Package 2 | 90 PAM, 120.000 cm × 100.000 cm × 92.000 cm (L × W × H), 249.000 kg |
