Schneider Electric NSYDLA84G
Modular distribution chassis 84 modules for NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86
- MPN
- NSYDLA84G
- EAN
- 3606480773860
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYDLA84G?

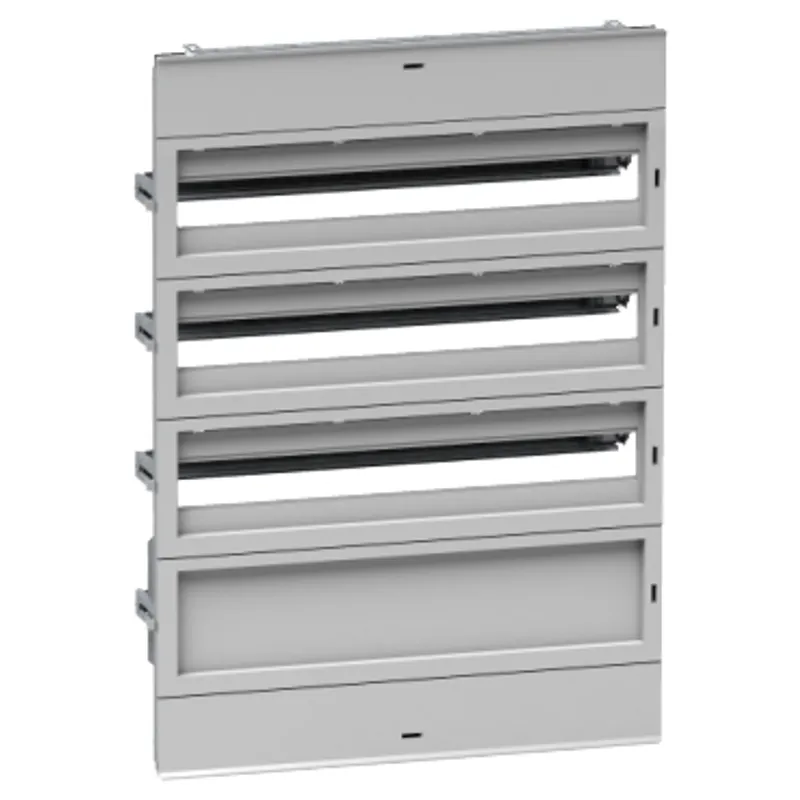

Schneider Electric Modular distribution chassis 84 modules for NSYPLM86,NSYS3D86,NSYCRN86,NSYS3X86, manufacturer part number NSYDLA84G. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application, Multi-purpose |
| Product or component type | Chassis |
| Device short name | DLA |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Device composition | 1 chassis structure, 2 finish cover, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 3 front panels with 35 mm DIN rail, 1 plain front panel with mounting plate |
| Quantity per set | Set of 1 |
| Material | Front panel: self-extinguishing insulating, Chassis structure and rails: steel |
| Colour | Front panel: grey (RAL 7035) |
| Fixing mode | By fixing element - on front with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 4 |
| Total number of 18 mm modules | 84 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 3 cut-outs |
| Height | 780 mm |
| Width | 560 mm |
Packaging
| Package 1 | 1 PCE, 14.500 cm × 58.000 cm × 78.500 cm (L × W × H), 8.588 kg |
| Package 2 | 16 PAM, 120.000 cm × 100.000 cm × 122.000 cm (L × W × H), 150.000 kg |
