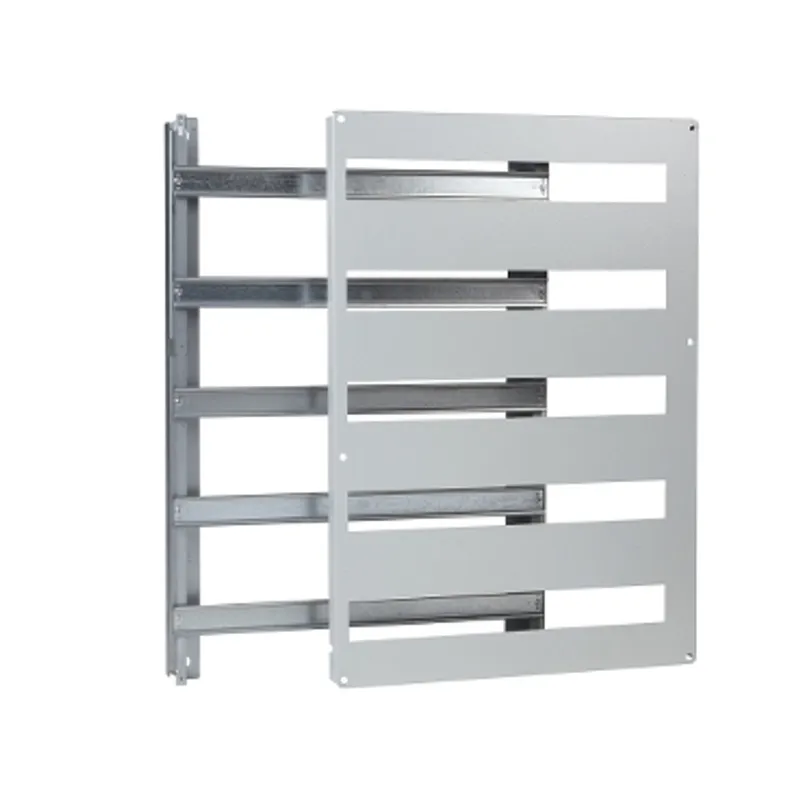

Modular chassis DLCR type for PanelSeT WM steel enclosure, 24 modules, H400xW300
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 1.76 kg |
Shipping & availability
When can NSYDLCR24 be shipped?
NSYDLCR24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYDLCR24 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYDLCR24 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYDLCR24, subject to availability and destination.
Schneider Electric Modular chassis DLCR type for PanelSeT WM steel enclosure, 24 modules, H400xW300, manufacturer part number NSYDLCR24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Modular distribution application, Multi-purpose |
| Product or component type | Chassis |
| Device short name | DL |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | Spacial Spacial S3X |
| Device composition | 1 chassis structure, 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm², 1 front panel, 2 35 mm DIN rail |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Front panel: grey (RAL 7035) |
| Surface finish | Polyester powder |
| Fixing mode | By fixing element - on back with supports location |
| Adjustment | In height from 40 to 85 mm for DIN rail |
| Number of horizontal rows | 2 |
| Total number of 18 mm modules | 24 |
| Type of front plate | Plain and cut-out plates |
| Number of cut-out | 2 cut-outs |
| Height | 355 mm |
| Width | 255 mm |
| Depth | 110 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 5.000 cm |
| Package 1 Width | 28.500 cm |
| Package 1 Length | 41.000 cm |
| Package 1 Weight | 1.764 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 45.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 10.584 kg |
| Coverage | Core product |
| Warranty | 18 months |
More Schneider Electric parts

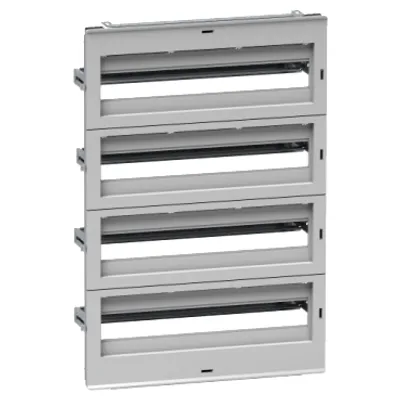

Available on requestModular distribution chassis 88 modules for NSYPLM75,NSYS3D75,NSYCRN75,NSYS3X75
