Schneider Electric
NSYCS400PLM35mm symetrical DIN rail -L 380mm for using with NSYTCSxx in PLM54 and 64
Schneider Electric NSYCSA57
Self adhesive and fixed canopy for PLM landscape enclosure W747xD62 mm - RAL9005
- MPN
- NSYCSA57
- EAN
- 3606481085276
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCSA57?

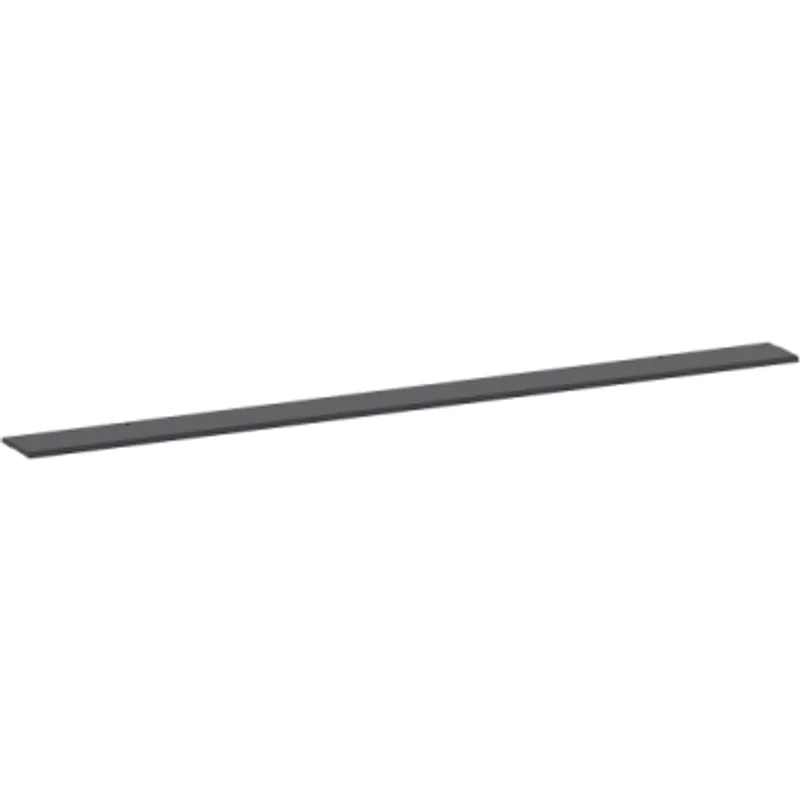

Canopy for PanelSeT PLM landscape enclosures. The canopy is to be installed on all enclosure models with 536mm width and 747mm depth. The width is 747mm. The depth is 62mm. The height is 5mm. Fixed adhesive and by screw on top of enclosure. The canopy is made from PVC (polyvinyl chloride) (color RAL 9005). Provides high resistance to impacts, temperature and bad weather. The kit is made up of 1 canopy, 2 screws and adhesive seal.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Range compatibility | PanelSeT PLM |
| For enclosure nominal dimensions | - H: 536 mm W: 747 mm D: 300 mm |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, adhesive seal |
| Material | PVC (polyvinyl chloride), ABS (acrylonitrile butadiene-styrene) |
| Colour | Black (RAL 9005) |
| Fixing mode | Adhesive |
| Height | 5 mm |
| Width | 747 mm |
| Depth | 62 mm |
Packaging
| Package 1 | 1 PCE, 2.0 cm × 1.0 cm × 2.0 cm (L × W × H), 10.0 g |
