Schneider Electric NSYCSH168

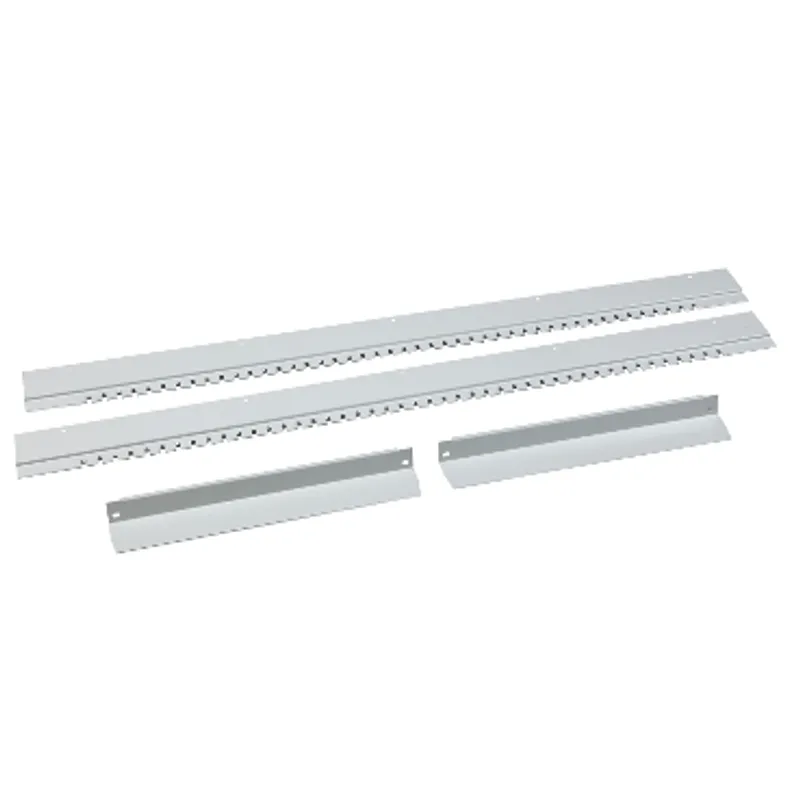

Single-chassis coupling set, PanelSeT SFN, PanelSeT SF, SM, for electrical enclosure H1600 W800mm, 324 modules of 18mm
- MPN
- NSYCSH168
- EAN
- 3606480063787
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCSH168?
Coupling kit for Spacial SM and Spacial SF enclosures The coupling kit is to be fixed on front of enclosure by fixing elements The real width is 702mm The real height is 1505mm and nominal height is 1600mm The real depth is 100mm Number of 18mm modules is 324 (1 module = 2 steps = 18 mm) The product is made from grey steel (RAL 7035)
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Application | Multi-purpose |
| Product or component type | Coupling kit |
| For enclosure nominal dimensions | - |
| Mounting location | Front of enclosure |
| Range compatibility | PanelSeT PanelSeT SM, PanelSeT PanelSeT SF |
| Device composition | Fixing elements, 2 horizontal crossbars, 2 vertical uprights |
| Quantity per set | Set of 1 |
| Material | Steel |
| Colour | Grey (RAL 7035) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element |
| Total number of 18 mm modules | 324 |
| Height | Real: 1505 mm, Nominal: 1600 mm |
| Width | Real: 702 mm |
| Depth | Real : 100 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 158.500 cm × 12.000 cm × 5.500 cm (L × W × H), 7.098 kg |
| Package 2 | 20 P2M, 200.000 cm × 120.000 cm × 30.000 cm (L × W × H), 177.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCSH168: frequently asked questions
When can NSYCSH168 be shipped?
NSYCSH168 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCSH168 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCSH168 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCSH168, subject to availability and destination.
