Schneider Electric NSYCS400PLM

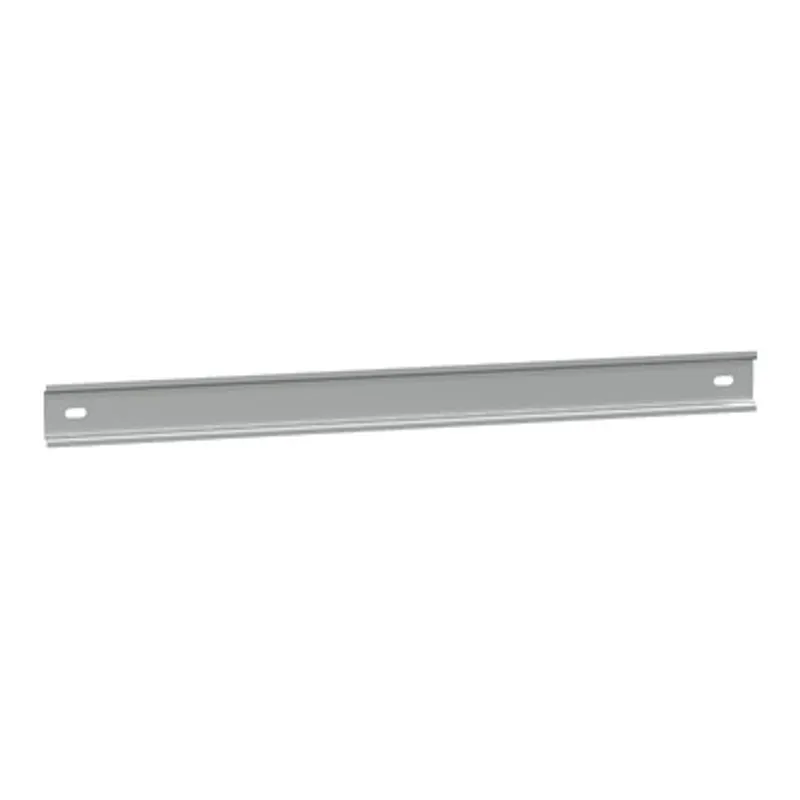

35mm symetrical DIN rail -L 380mm for using with NSYTCSxx in PLM54 and 64
- MPN
- NSYCS400PLM
- EAN
- 3606480191657
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCS400PLM?
Set of 2 symmetrical DIN rails for equipment to be used in Thalassa PLM enclosures The rail is made from zinc coated 1mm steel The width is 7,2mm The height is 35mm The product length is 410mm
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Mounting support | Plastic nut |
| Range compatibility | PanelSeT PLM |
| Device composition | 1 rail |
| Quantity per set | Set of 2 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element - rear of enclosure location |
| Adjustment | DIN rail adjustment in height, pitch 25 mm |
| Length | 410 mm |
| Height | 35 mm |
| Width | 7.2 mm |
| thickness | 1 mm |
Packaging
| Package 1 | 1 PCE, 42.000 cm × 6.000 cm × 1.000 cm (L × W × H), 145.000 g |
| Package 2 | 2 BB1, 42.000 cm × 6.000 cm × 1.000 cm (L × W × H), 294.000 g |
