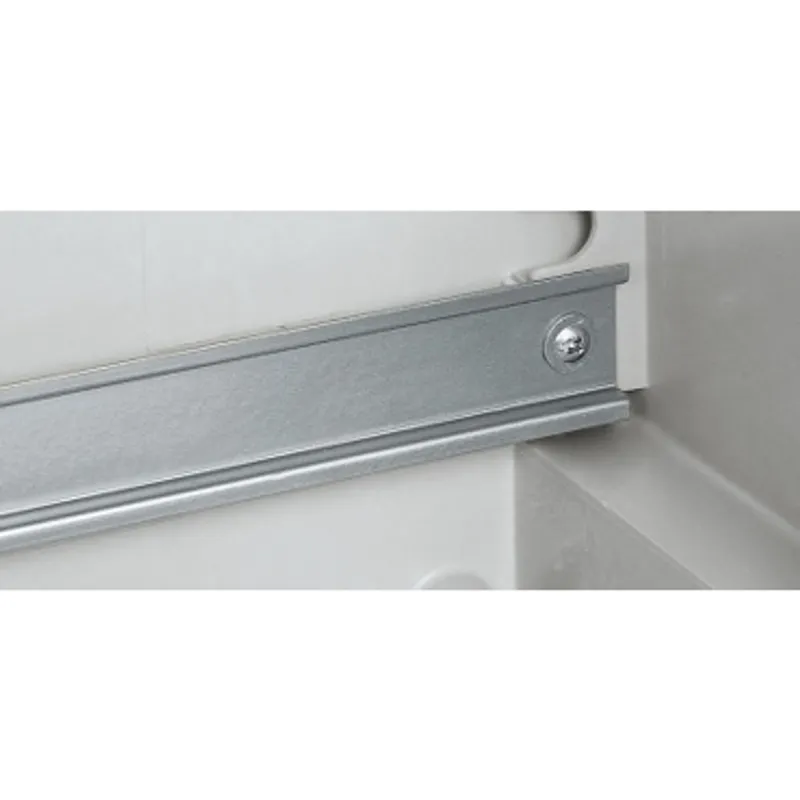

Schneider Electric NSYCS600PLM
35mm symetrical DIN rail -L 580mm for using with NSYTCSxx in PLM86
- MPN
- NSYCS600PLM
- EAN
- 3606480191671
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCS600PLM?
Set of 2 symmetrical DIN rails for equipment to be used in PanelSeT PLM enclosures. The rail is made from zinc coated 1mm steel. The width is 7.2mm. The height is 35mm. The product length is 610mm. Fixed with a pitch of 25mm.
Specifications
Specifications
| Anwendung | Multi-purpose |
| Range | PanelSeT |
| Product or component type | Rail |
| Accessory / separate part category | Mounting accessory |
| Type of rail | Symmetrical DIN |
| Enclosure nominal dimensions | - |
| Mounting support | Plastic nut |
| Range compatibility | PanelSeT PLM |
| Device composition | 1 rail |
| Quantity per set | Set of 2 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | By fixing element - rear of enclosure location |
| Adjustment | DIN rail adjustment in height, pitch 25 mm |
| Length | 610 mm |
| Height | 35 mm |
| Width | 7.2 mm |
| thickness | 1 mm |
Packaging
| Package 1 | 1 PCE, 62.500 cm × 3.500 cm × 0.800 cm (L × W × H), 223.000 g |
| Package 2 | 50 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 11.150 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCS600PLM: frequently asked questions
When can NSYCS600PLM be shipped?
NSYCS600PLM is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCS600PLM in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCS600PLM and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCS600PLM, subject to availability and destination.
