Schneider Electric NSYCSA68
Self adhesive and fixed canopy for PLM landscape enclosure W847xD62 mm - RAL9005
- MPN
- NSYCSA68
- EAN
- 3606481085283
- Category
- PanelSeT PLM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCSA68?

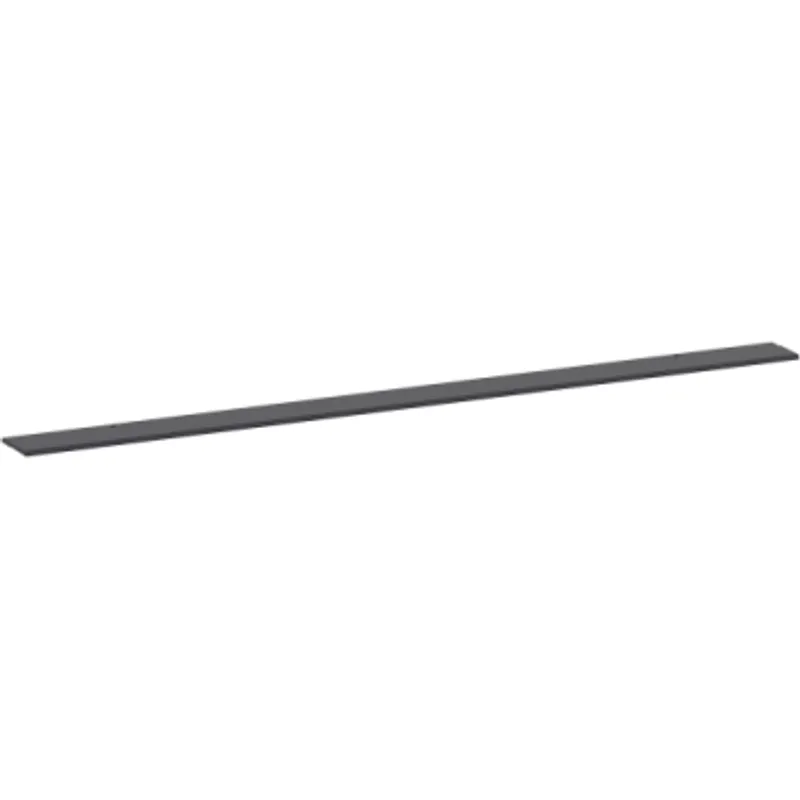

Canopy for PanelSeT PLM landscape enclosures. The canopy is to be installed on all enclosure models with 636mm width and 847mm depth. The width is 847mm. The depth is 62mm. The height is 5mm. Fixed adhesive and by screw on top of enclosure. The canopy is made from PVC (polyvinyl chloride) (color RAL 9005). Provides high resistance to impacts, temperature and bad weather. The kit is made up of 1 canopy, 2 screws and adhesive seal.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Range compatibility | PanelSeT PLM |
| For enclosure nominal dimensions | - H: 636 mm W: 847 mm D: 300 mm |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, adhesive seal |
| Material | PVC (polyvinyl chloride), ABS (acrylonitrile butadiene-styrene) |
| Colour | Black (RAL 9005) |
| Fixing mode | Adhesive |
| Height | 5 mm |
| Width | 847 mm |
| Depth | 62 mm |
Packaging
| Package 1 | 1 PCE, 92.000 cm × 8.000 cm × 0.500 cm (L × W × H), 410.000 g |
| Package 2 | 60 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 24.600 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCSA68: frequently asked questions
When can NSYCSA68 be shipped?
NSYCSA68 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCSA68 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCSA68 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCSA68, subject to availability and destination.
