Schneider Electric NSYCRN86400T

Glazed steel door, PanelSeT CRN, without mounting plate, 800x600x400mm, IP66, IK08, RAL7035

MPN
NSYCRN86400T
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

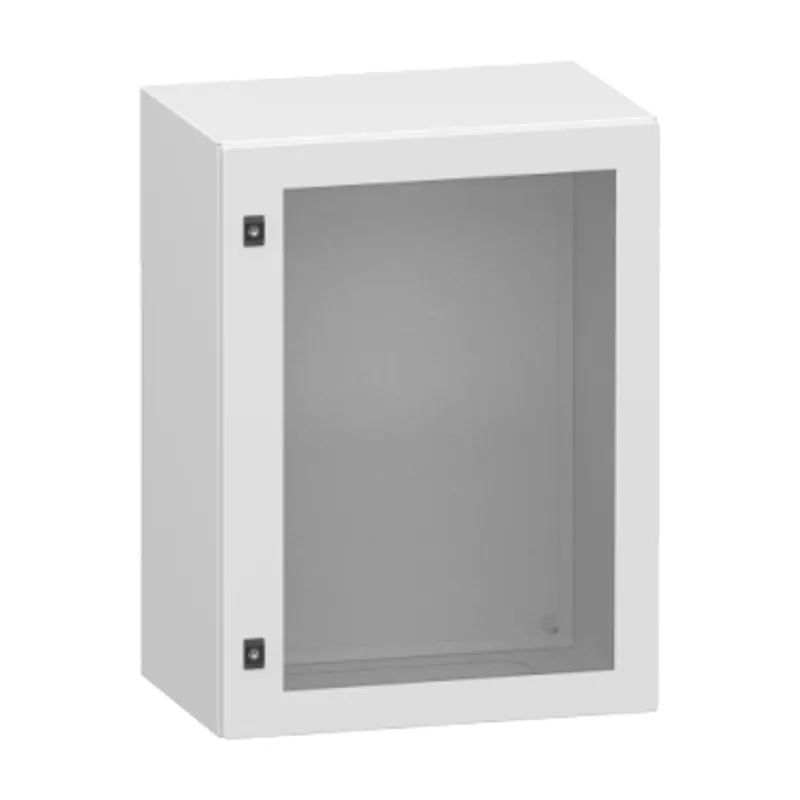

What is the Schneider Electric NSYCRN86400T?

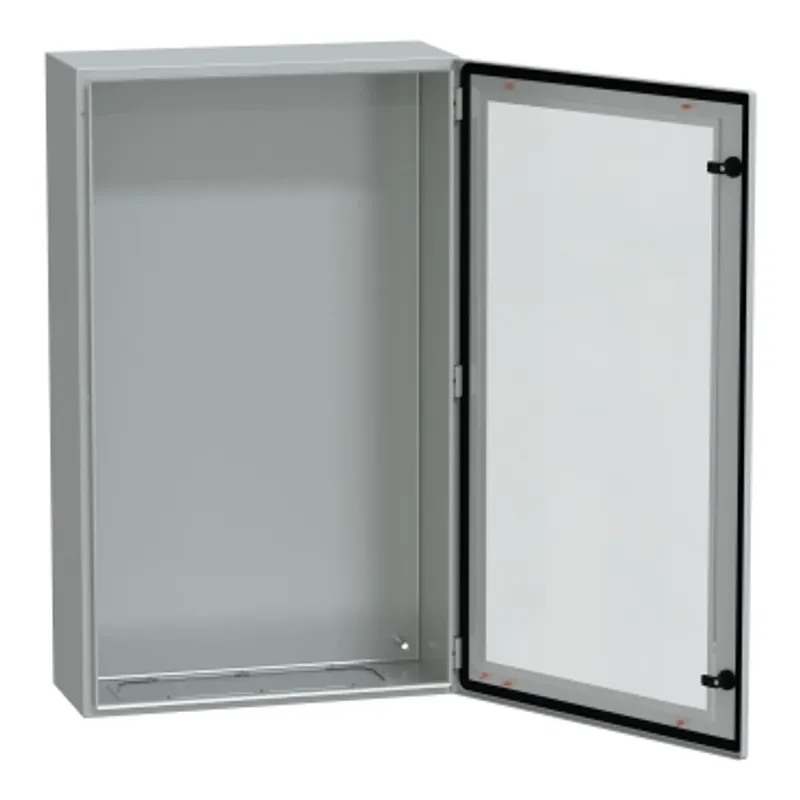

This PanelSeT CRN is a wall-mounting enclosure with a glazed door that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 800 mm, 600 mm and 400 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The door is made of steel sheet and Securit glass, has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. It has a three-point locking system for one and two doors. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure

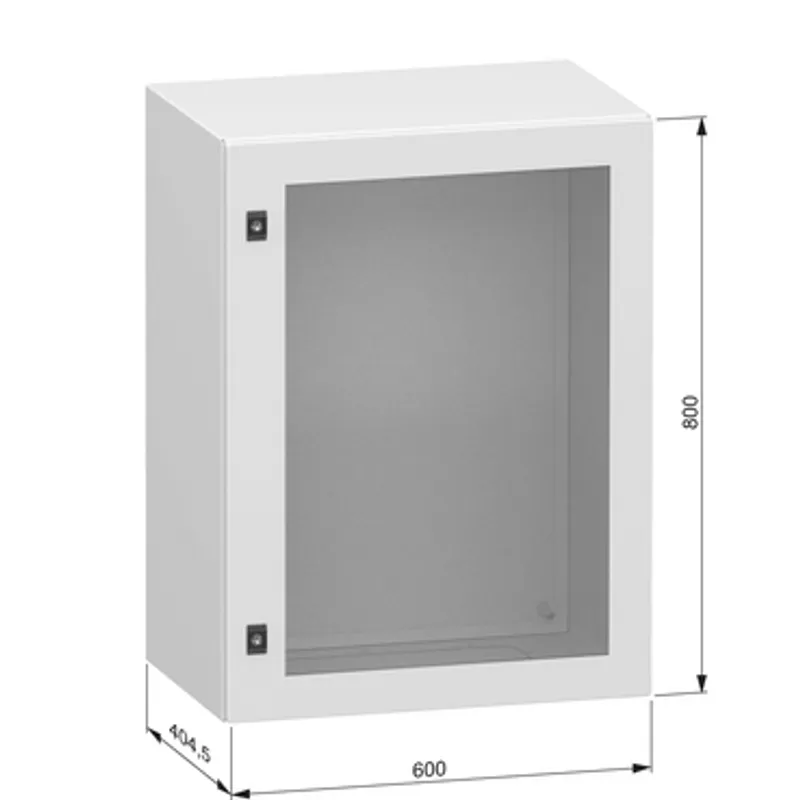

Enclosure nominal height800 mm
Enclosure nominal width600 mm
Enclosure nominal depth400 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 cable gland plate, 1 door, 1 lock
Door typeGlazed
Mounting plate descriptionWithout mounting plate
body typeSingle piece body
Number of doorsFront face: 1 door(s)
Door opening sideReversible (120 °)
Lock type3 mm double-bar lock
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationsUL, cUL
Net weight30 kg
IP degree of protectionIP66 conforming to IEC 60529
IK degree of protectionIK08 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 82.000 cm × 62.000 cm × 42.000 cm (L × W × H), 26.500 kg
Package 26 PAM, 120.000 cm × 100.000 cm × 182.000 cm (L × W × H), 170.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN86400T: frequently asked questions

When can NSYCRN86400T be shipped?

NSYCRN86400T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN86400T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN86400T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN86400T, subject to availability and destination.

More Schneider Electric parts

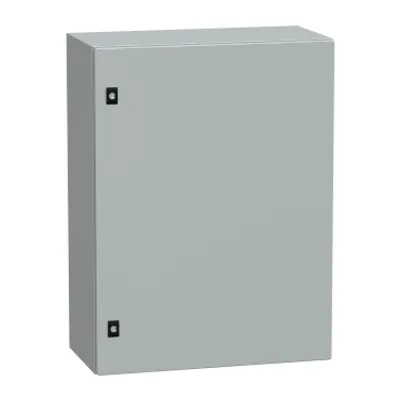

Schneider Electric NSYCRN86300 – PanelSeT CRN plain door w/o mount.plate. H800xW600xD300 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN86300

PanelSeT CRN plain door w/o mount.plate. H800xW600xD300 IP66 IK10 RAL7035..

Schneider Electric NSYCRN86300P – PanelSeT CRN plain door with mount.plate. H800xW600xD300 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN86300P

PanelSeT CRN plain door with mount.plate. H800xW600xD300 IP66 IK10 RAL7035..

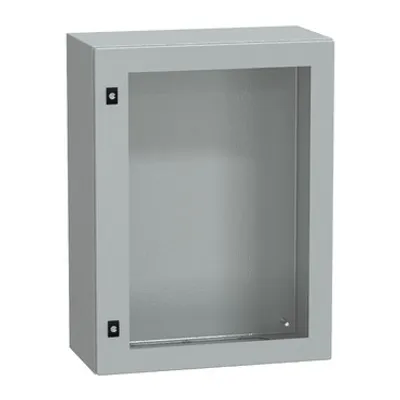

Schneider Electric NSYCRN86300T – PanelSeT CRN tspt door w/o mount.plate. H800xW600xD300 IP66 IK08 RAL7035..
Schneider Electric
NSYCRN86300T

PanelSeT CRN tspt door w/o mount.plate. H800xW600xD300 IP66 IK08 RAL7035..

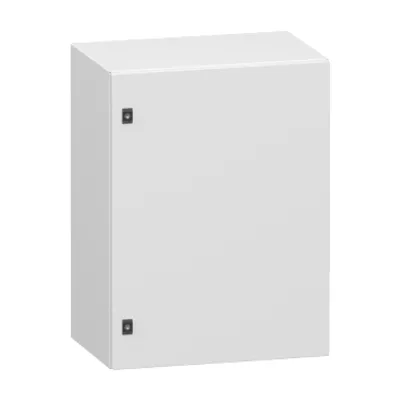

Schneider Electric NSYCRN86400 – Plain steel door, PanelSeT CRN, without mounting plate, 800x600x400mm, IP66, IK10, RAL7035
Schneider Electric
NSYCRN86400

Plain steel door, PanelSeT CRN, without mounting plate, 800x600x400mm, IP66, IK10, RAL7035

Schneider Electric NSYCRN88200 – PanelSeT CRN plain door w/o mount.plate. H800xW800xD200 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN88200

PanelSeT CRN plain door w/o mount.plate. H800xW800xD200 IP66 IK10 RAL7035..

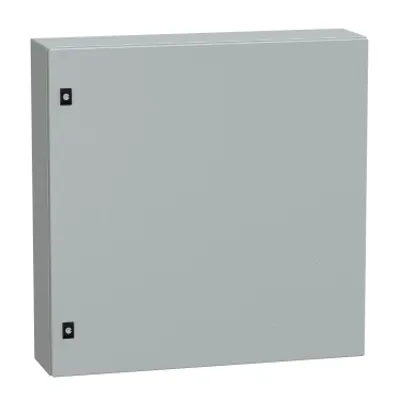

Schneider Electric NSYCRN88200P – PanelSeT CRN plain door with mount.plate. H800xW800xD200 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN88200P

PanelSeT CRN plain door with mount.plate. H800xW800xD200 IP66 IK10 RAL7035..

Schneider Electric NSYCRN88300 – PanelSeT CRN plain door w/o mount.plate. H800xW800xD300 IP66 IK10 RAL7035..
Schneider Electric
NSYCRN88300

PanelSeT CRN plain door w/o mount.plate. H800xW800xD300 IP66 IK10 RAL7035..

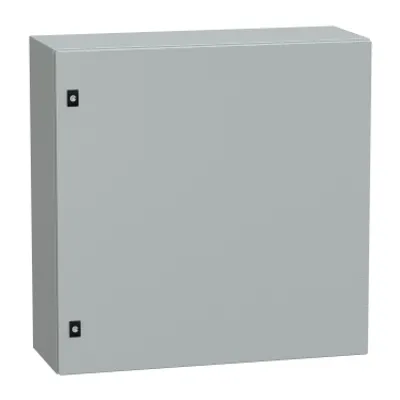

Schneider Electric NSYCRN88300P – PanelSeT CRN plain door with mount.plate. H800xW800xD300 IP66 IK10 RAL7035..
