Plain steel door, PanelSeT CRN, without mounting plate, 800x600x400mm, IP66, IK10, RAL7035

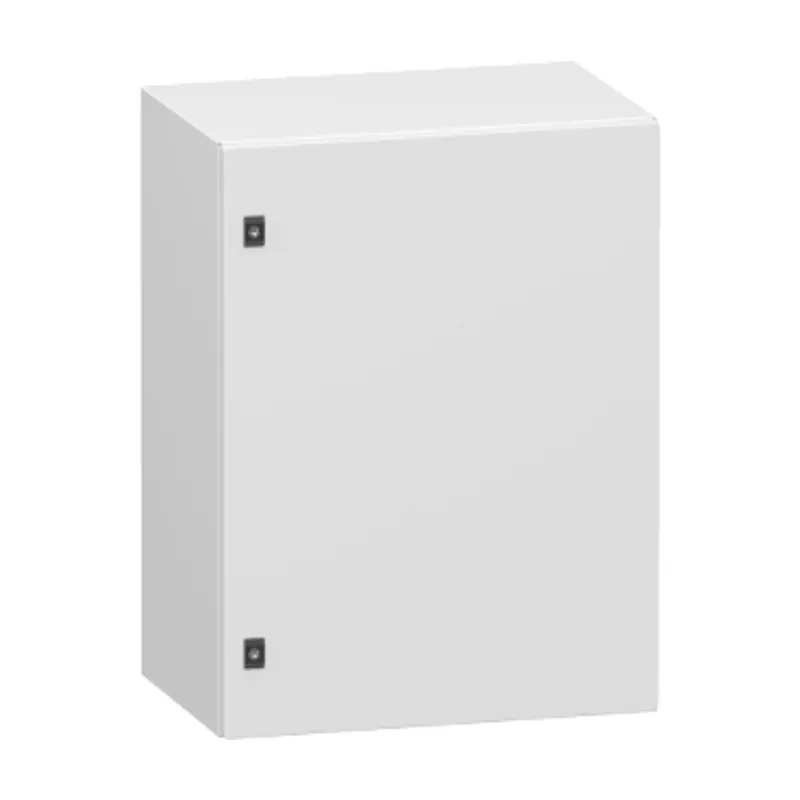

This PanelSeT CRN is a wall-mounting enclosure that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 800 mm, 600 mm and 400 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The door is made of steel sheets, has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. It has a 3-mm standard double-bar lock. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.
| Range | PanelSeT |
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |

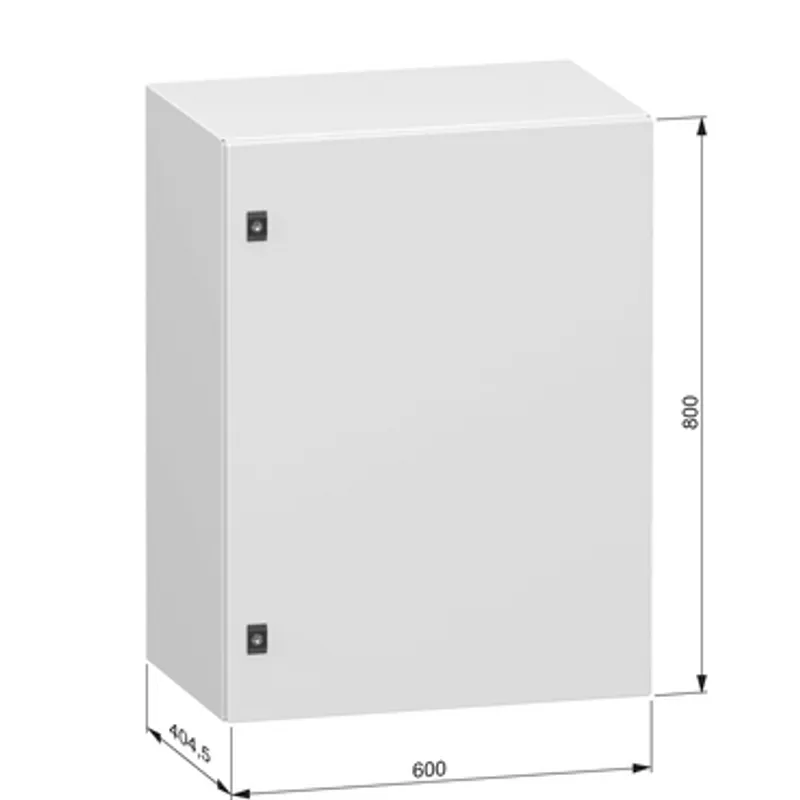

| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| body type | Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | cUL, UL |
| Net weight | 31 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Coverage | Core product |
| Package 1 | 1 PCE, 42.000 cm × 62.000 cm × 82.000 cm (L × W × H), 26.500 kg |
| Package 2 | 6 PAL, 120.000 cm × 82.000 cm × 201.000 cm (L × W × H), 170.000 kg |
