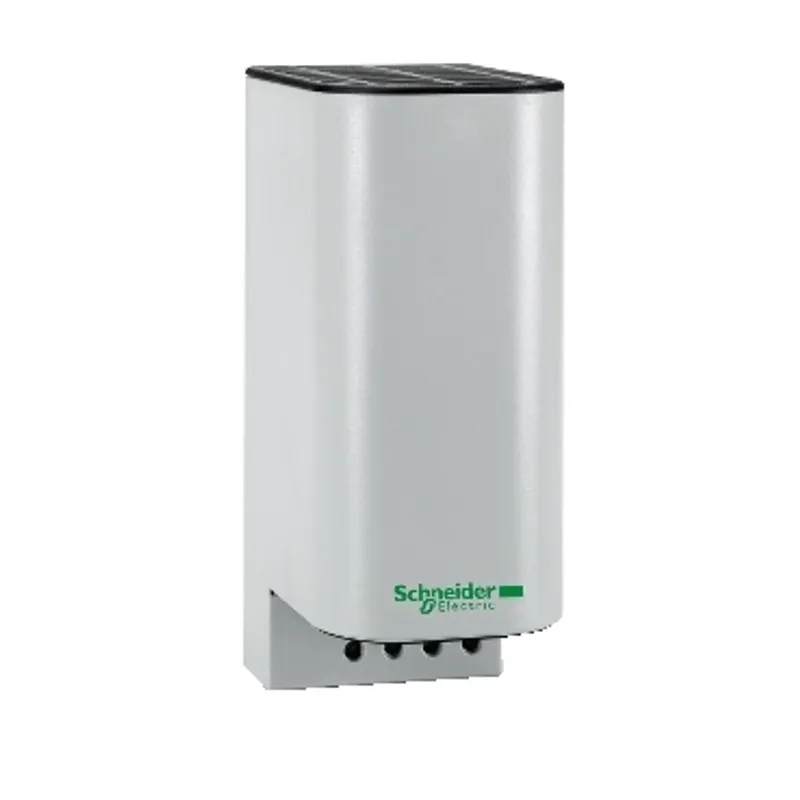

Schneider Electric NSYCR50WU2C
ClimaSys PTC heating resistance 50W,110-250V insulate
- MPN
- NSYCR50WU2C
- EAN
- 3606480152290
- Category
- ClimaSys CR
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCR50WU2C?
Resistance heater 50W, 110,250 V AC 50/60 Hz for ClimaSys CR Thermal Management System The product has extruded aluminium body and plastic cover Fixing by clips in vertical operating position The product width is 60mm, height is 110mm and depth is 90mm The heaters must be installed with a thermal controller to control the temperature or the humidity inside the enclosure The enclosure must be sealed to prevent the entry of air from the outside An electrical protection device must be installed on the supply side of the unit
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CR |
| Product or component type | Resistance heater |
| Power range | 50 W |
| Input voltage | 120...240 V AC 50/60 Hz |
| Electrical connection | 4 screw terminals 2.5 mm² |
| Operating position | Vertical |
| Ambient air temperature for operation | -40…70 °C |
| IP degree of protection | IP20 |
| Electrical insulation class | Class II |
| Product certifications | UL, VDE |
| Material | Body: extruded aluminium, Cover: plastic |
| Height | External: 110 mm |
| Width | External: 60 mm |
| Depth | External : 90 mm |
| Condition of use | Electrical protection is needed, Air sealed enclosure, Heaters must be installed with a thermal controller |
| fixing mode | By clips |
| Mounting support | 35 mm DIN rail |
Packaging
| Package 1 | 1 PCE, 7.500 cm × 10.000 cm × 12.500 cm (L × W × H), 336.000 g |
| Package 2 | 50 CAR, 60.000 cm × 40.000 cm × 31.000 cm (L × W × H), 18.006 kg |
| Package 3 | 500 PAM, 120.000 cm × 100.000 cm × 75.000 cm (L × W × H), 195.060 kg |
