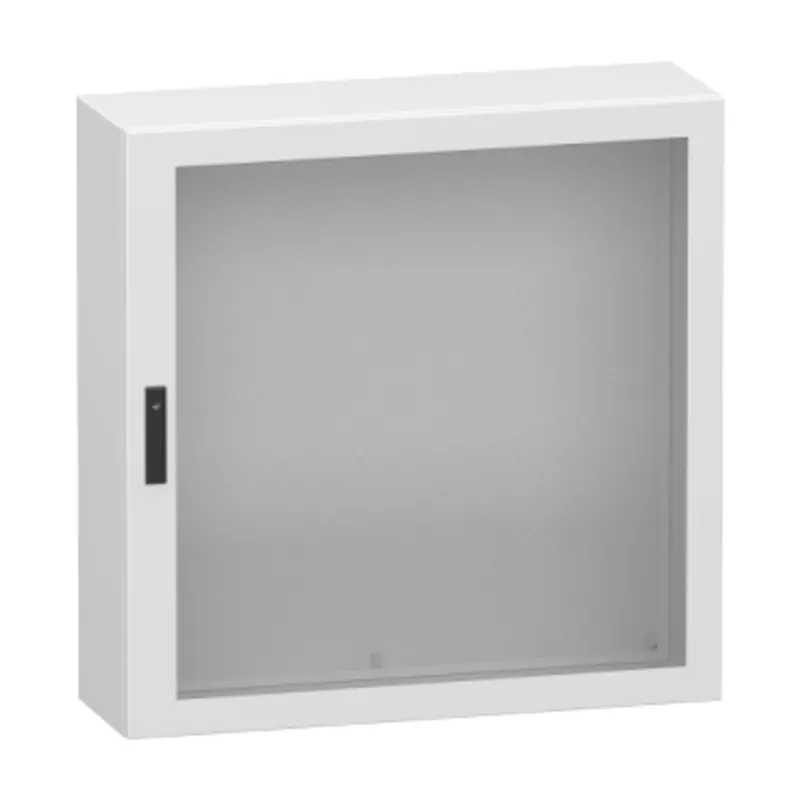

Schneider Electric NSYCRN1010300T

Glazed steel door, PanelSeT CRN, without mounting plate, 1000x1000x300mm, IP66, IK08, RAL7035

MPN
NSYCRN1010300T
Category
PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCRN1010300T?

This PanelSeT CRN is a wall-mounting enclosure with a glazed door that is suitable for multi-purpose applications. It has a nominal height, width, and depth of 1000 mm, 1000 mm and 300 mm, respectively. The body of the enclosure are made of galvanized steel for durability. The door is made of steel sheet and Securit glass, has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. It has a 3-mm standard double-bar lock. An epoxy-polyester powder finish provides a smooth appearance. The enclosure has a grey (RAL 7035) color. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress. The enclosure has IP66 and UL Types 1, 2, 3, 3R, 5, 12 and 13 rating, which makes it resistant to dust, water and oil ingress.

Specifications

Specifications

RangePanelSeT
Product namePanelSeT CRN
ApplicationMulti-purpose
CategoryCompact enclosure

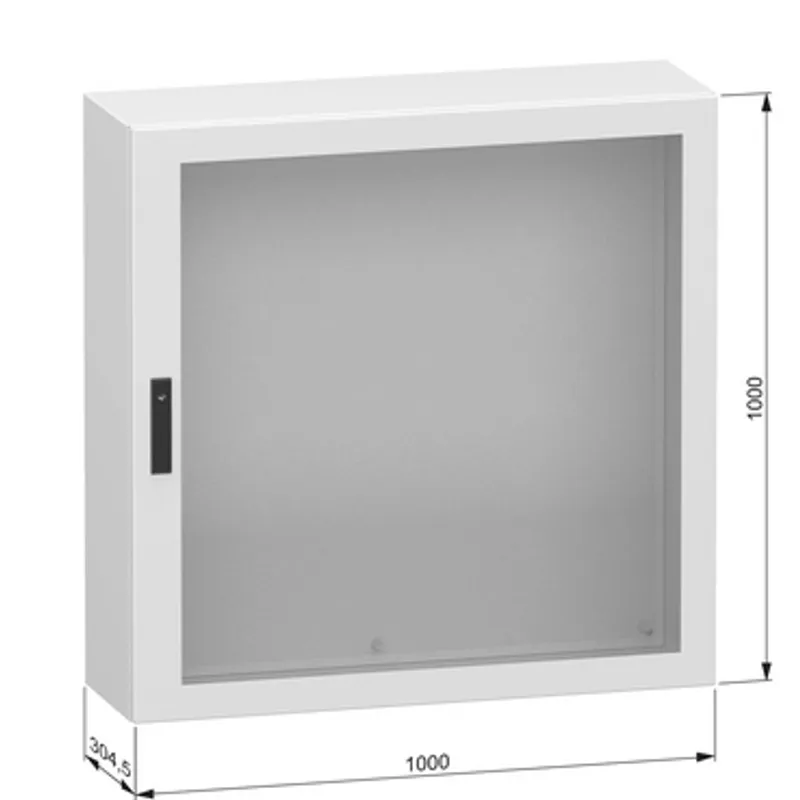

Enclosure nominal height1000 mm
Enclosure nominal width1000 mm
Enclosure nominal depth300 mm
Installation accessory typeWall-mounting
Device composition1 body, 1 lock, 2 cable gland plate: bottom, 2 door
Door typeGlazed
Mounting plate descriptionWithout mounting plate
body typeSingle piece body
Number of doorsFront face: 2 door(s)
Door opening sideReversible (120 °)
Lock type3 points lock, 5 mm double-bar
Type of gland plateStandard
Accessibility for operationFront
Removable partsDoor by hinges, Cable gland plate by screws
MaterialBody: steel, Door: steel and security glass
Surface finishEpoxy-polyester powder
ColourGrey (RAL 7035)
StandardsIEC 62208, UL, CUL
Product certificationscUL, UL
Net weight47 kg
IP degree of protectionIP55 conforming to IEC 60529
IK degree of protectionIK08 conforming to IEC 62262
CoverageCore product

Packaging

Package 11 PCE, 32 cm × 102.5 cm × 102.5 cm (L × W × H), 39.8 kg
Package 23 PAL, 120 cm × 100 cm × 117 cm (L × W × H), 119.4 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

NSYCRN1010300T: frequently asked questions

When can NSYCRN1010300T be shipped?

NSYCRN1010300T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYCRN1010300T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYCRN1010300T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCRN1010300T, subject to availability and destination.

More Schneider Electric parts

Schneider Electric NSYCR55WU1 – ClimaSys PTC heating resistance 55W, 12-24V
Schneider Electric
NSYCR55WU1

ClimaSys PTC heating resistance 55W, 12-24V

Schneider Electric NSYCR55WU2 – ClimaSys PTC heating resistance 55W, 110-250V
Schneider Electric
NSYCR55WU2

ClimaSys PTC heating resistance 55W, 110-250V

Schneider Electric NSYCR55WU3 – ClimaSys PTC heating resistance 55W, 270-420V
Schneider Electric
NSYCR55WU3

ClimaSys PTC heating resistance 55W, 270-420V

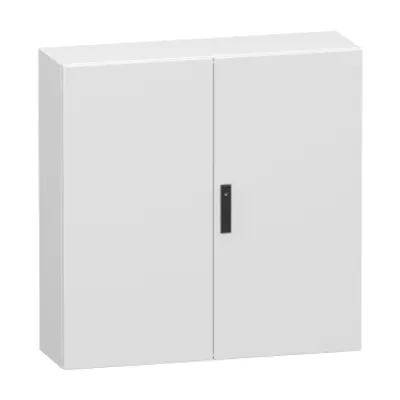

Schneider Electric NSYCRN1010300D – Double plain steel door, PanelSeT CRN, without mounting plate, 1000x1000x300mm, IP55, IK10, RAL7035
Schneider Electric
NSYCRN1010300D

Double plain steel door, PanelSeT CRN, without mounting plate, 1000x1000x300mm, IP55, IK10, RAL7035

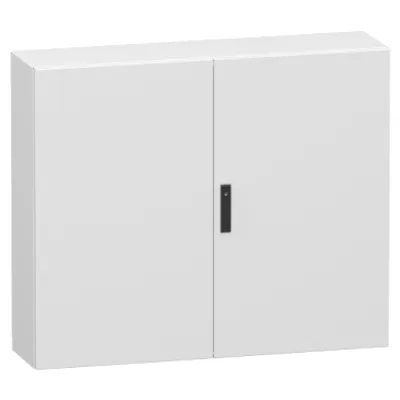

Schneider Electric NSYCRN1012300D – Double plain steel door, PanelSeT CRN, without mounting plate, 1000x1200x300mm, IP55, IK10, RAL7035
Schneider Electric
NSYCRN1012300D

Double plain steel door, PanelSeT CRN, without mounting plate, 1000x1200x300mm, IP55, IK10, RAL7035

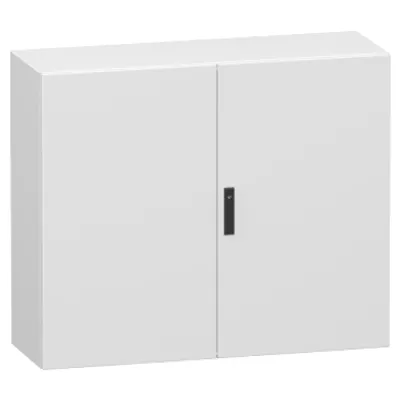

Schneider Electric NSYCRN1012400D – Double plain steel door, PanelSeT CRN, without mounting plate, 1000x1200x400mm, IP55, IK10, RAL7035
Schneider Electric
NSYCRN1012400D

Double plain steel door, PanelSeT CRN, without mounting plate, 1000x1200x400mm, IP55, IK10, RAL7035

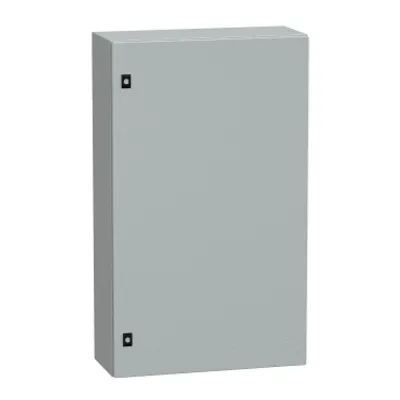

Schneider Electric NSYCRN106250 – PanelSeT CRN plain door w/o mount.plate. H1000xW600xD250 IP66 IK10 RAL7035..
