Schneider Electric NSYCMUMC50

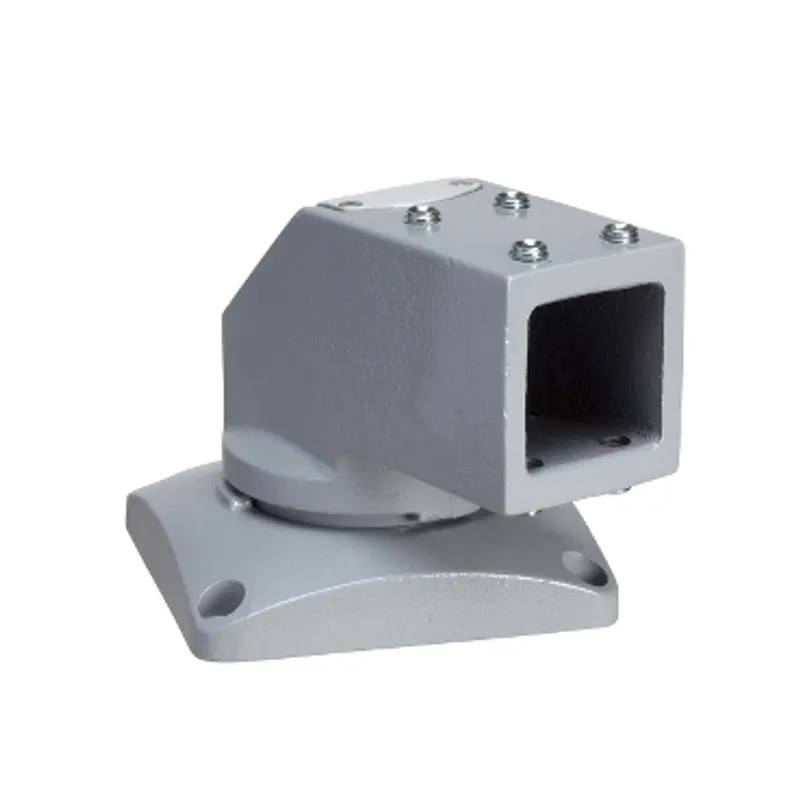

Horizontal rotating bracket, square 50 mm RAL 7040. For S3CM HMI encl.

MPN
NSYCMUMC50
EAN
3606480213007
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCMUMC50?

Spacial S3CM HMI horizontal rotating bracket, square 50mm. H: 134 x 140 x 164 mm. Fixing on support. Mounting between tube and support, in horizontal position . Operating angle: 295°. Permanent permissible load: 5.4 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeFixing on support
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBetween tube and support
Mounting supportOption of passing cables through the inside, For 50 mm square tube
Range compatibilityPanelSeT PanelSeT S3CM
Device compositionFixing elements, 1 fixing and rotating bracket
Quantity per setSet of 1
MaterialMoulded steel
ColourGrey (RAL 7040)
Surface finishEpoxy-polyester powder
Fixing modeBy fixing element - screw type M12 - horizontal tube location, By 4 screws - screw type M9 - on support location
Operating angle295 °
Permanent permissible load5.4 kg
Height134 mm
Width140 mm
Depth164 mm
Net weight5.56 kg
CoverageCore product

Packaging

Package 11 PCE, 19.000 cm × 18.500 cm × 15.500 cm (L × W × H), 5.750 kg
Package 248 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 289.000 kg
