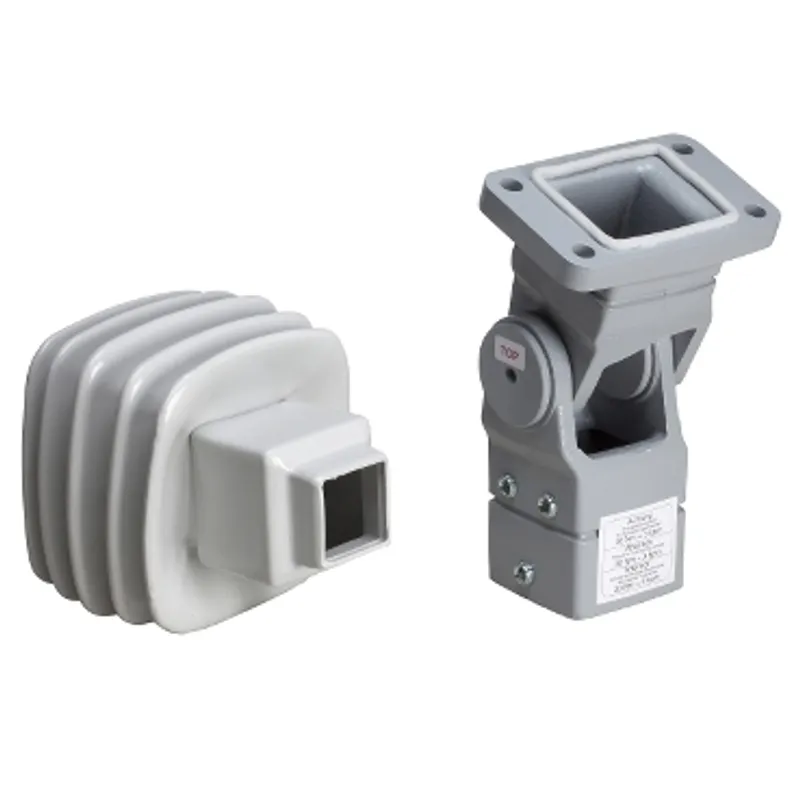

Schneider Electric NSYCMUMA50

Articulated fixing, square 50 mm, cast steel RAL 7040. For S3CM HMI encl.

MPN
NSYCMUMA50
EAN
3606480213021
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCMUMA50?

Spacial S3CM HMI articulated fixing. 147 x 210 mm. Mounting between tube and support. By screw (M12) horz tube, and by 4 screws (M11) on support. For 50 mm square tube, option of passing cables through the inside. Op angle is 170°. Load is 4.35 kg. Moulded steel, epoxy-polyester powder finish. Grey RAL 7035.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryMounting accessory
Product or component typeFixing on support
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBetween tube and support
Mounting supportOption of passing cables through the inside, For 50 mm square tube
Range compatibilityPanelSeT S3CM
Device compositionFixing elements, 1 bellow, 1 fixing and rotating bracket
Quantity per setSet of 1
MaterialMoulded steel
ColourBracket: grey (RAL 7040), Bellow: grey (RAL 7035)
Surface finishEpoxy-polyester powder
Fixing modeBy fixing element - screw type M12 - horizontal tube location, By 4 screws - screw type M11 - on support location
Operating angle170 °
Permanent permissible load4.35 kg
Height148 mm
Width148 mm
Depth210 mm
Net weight4.6 kg

Packaging

Package 11 PCE, 25.000 cm × 25.000 cm × 18.000 cm (L × W × H), 4.682 kg
Package 220 PAM, 120.000 cm × 100.000 cm × 49.000 cm (L × W × H), 107.000 kg
