Schneider Electric NSYCMUIA50

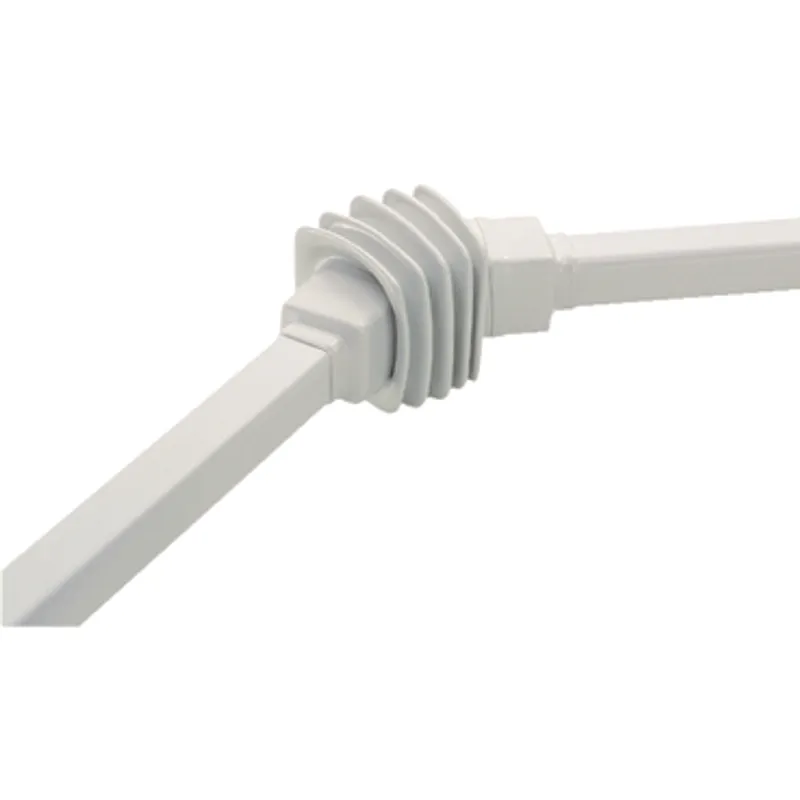

Articulated tube joint, square 50 mm, cast steel RAL 7040. For S3CM HMI encl.

MPN
NSYCMUIA50
EAN
3606480213045
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYCMUIA50?

Spacial S3CM HMI articulated tube joint. 147 x 236 mm. Multi-purpose tube adaptor. Mounting between 2 horizontal tubes. For 50 mm square tube, option of passing cables through the inside. Op angle is 170°. Load is 4.25 kg. Moulded steel, epoxy-polyester powder finish. Grey RAL 7035.

Specifications

Specifications

RangePanelSeT
Accessory / separate part categoryCable management accessory
Product or component typeTube adaptor
Device applicationMulti-purpose
Enclosure nominal dimensions-
Mounting locationBetween 2 horizontal tubes
Mounting supportFor 50 mm square tube, Option of passing cables through the inside
Range compatibilityPanelSeT PanelSeT S3CM
Device compositionFixing elements, 1 linking and rotating bracket, 1 bellow
Quantity per setSet of 1
MaterialMoulded steel
ColourGrey (RAL 7035)
Surface finishEpoxy-polyester powder
Fixing modeBy fixing element - screw type M12 - horizontal tube location
Operating angle170 °
Permanent permissible load4.25 kg
Height148 mm
Width148 mm
Depth236 mm
Net weight4.65 kg
CoverageCore product

Packaging

Package 11 PCE, 25.000 cm × 24.500 cm × 17.500 cm (L × W × H), 4.656 kg
Package 230 PAM, 120.000 cm × 100.000 cm × 48.000 cm (L × W × H), 153.000 kg
