Schneider Electric
NSYCMUIA50Articulated tube joint, square 50 mm, cast steel RAL 7040. For S3CM HMI encl.

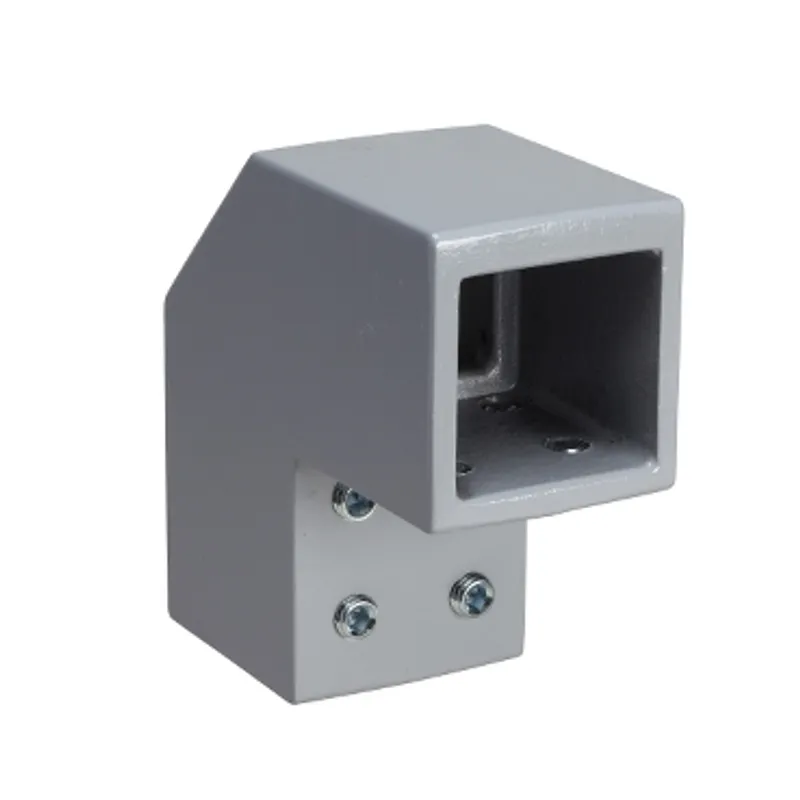

Schneider Electric NSYCMUTC50
Fixed bracket, square 50 mm RAL 7040. For PanelSeT S3CM HMI encl.
- MPN
- NSYCMUTC50
- EAN
- 3606480212963
- Category
- PanelSet S3CM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCMUTC50?
Spacial S3CM HMI Fixed bracket, square 50mm. H: 144 x 155 x 144 mm. Tube adaptor. Mounting between horizontal tube and a vertical tube . Permanent permissible load: 1.35 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Cable management accessory |
| Product or component type | Tube adaptor |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Between horizontal tube and a vertical tube |
| Mounting support | Option of passing cables through the inside, For 50 mm square tube |
| Range compatibility | PanelSeT S3CM |
| Device composition | Fixing elements, 1 fixing bracket |
| Quantity per set | Set of 1 |
| Material | Aluminium |
| Colour | Grey (RAL 7040) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | By fixing element - screw type M12 - fixing the tube location |
| Permanent permissible load | 1.35 kg |
| Height | 144 mm |
| Width | 155 mm |
| Depth | 144 mm |
| Net weight | 1.43 kg |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 15.500 cm × 16.000 cm (L × W × H), 1.426 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCMUTC50: frequently asked questions
When can NSYCMUTC50 be shipped?
NSYCMUTC50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCMUTC50 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCMUTC50 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCMUTC50, subject to availability and destination.
