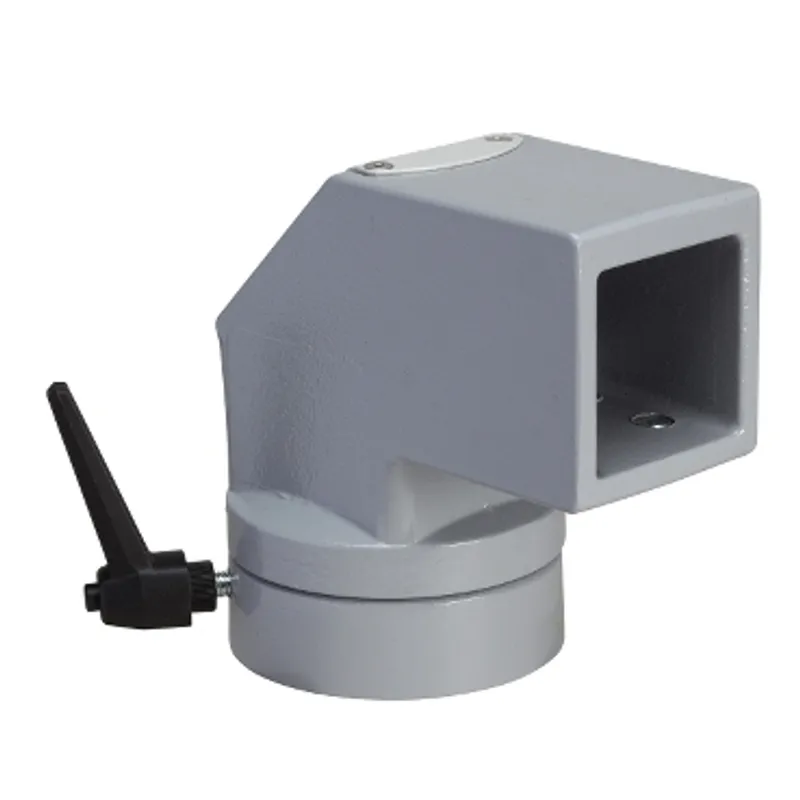

Schneider Electric NSYCMUCC50
Horizontal rotating fixing, square 50 mm RAL 7040. For S3CM HMI encl.
- MPN
- NSYCMUCC50
- EAN
- 3606480213113
- Category
- PanelSet S3CM
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYCMUCC50?
Spacial S3CM HMI horizontal rotating fixing, square 50mm. H is 147 x 154 x 180 mm. Bent and rotating enclosure fixing. Mounting on enclosure, in horizontal position. Operating angle is 310 °. Permanent permissible load is 2 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7035. set of 1.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Cable management accessory |
| Product or component type | Bent and rotating enclosure fixing |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | On enclosure, in horizontal position |
| Mounting support | For 50 mm square tube, Option of passing cables through the inside |
| Range compatibility | PanelSeT PanelSeT S3CM |
| Device composition | Fixing elements, 1 rotating fixing |
| Quantity per set | Set of 1 |
| Material | Aluminium |
| Colour | Grey (RAL 7040) |
| Surface finish | Epoxy-polyester powder |
| Fixing mode | Fixing through the support surface by 4 screws - screw type M6 |
| Operating angle | 310 ° |
| Permanent permissible load | 2 kg |
| Height | 147 mm |
| Width | 154 mm |
| Depth | 180 mm |
| Diameter | 96 mm |
| Net weight | 2 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 19.000 cm × 17.000 cm × 12.000 cm (L × W × H), 1.916 kg |
