Schneider Electric NSYCCOHYT120VID

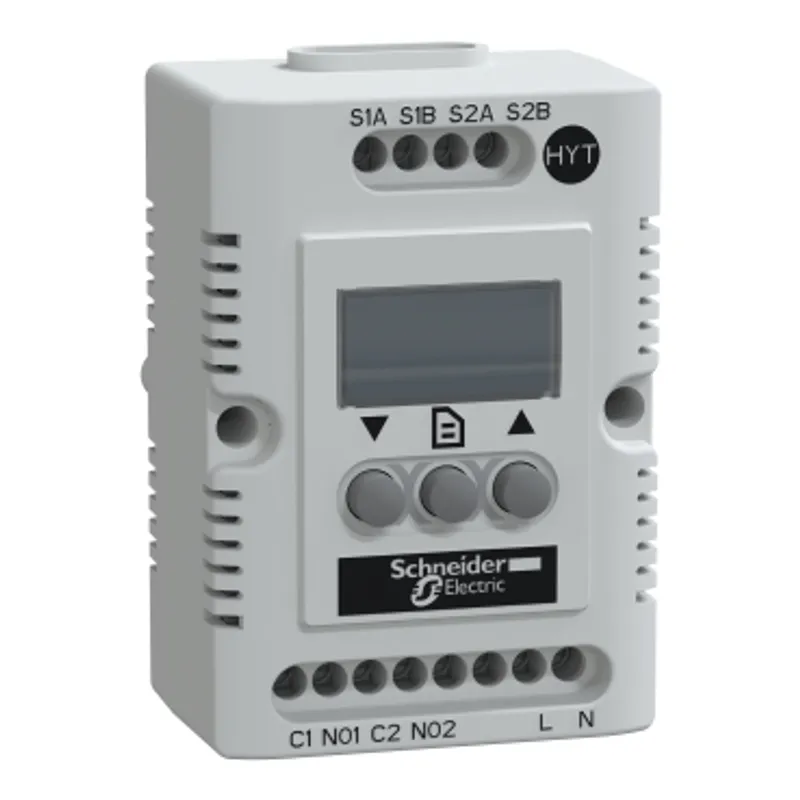

Climasys CC - electronic hygrotherm - 95 to 135V - temp -40 to 80 C - Hr 20 to 80%
- MPN
- NSYCCOHYT120VID
- EAN
- 3606480152580
- Category
- ClimaSys CC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCCOHYT120VID?
Schneider Electric Climasys CC - electronic hygrotherm - 95 to 135V - temp -40 to 80 C - Hr 20 to 80%, manufacturer part number NSYCCOHYT120VID. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Electronic hygrotherm |
| Temperature setting range | -40…80 °C |
| Humidity setting range | 20…80 % |
| Display type | OLED screen |
| Information displayed | Temperature in °F, Relative humidity, Temperature in °C |
| Input voltage | 90...140 V AC |
| Sensor type | Optional NTC external sensor |
| Maximum switching capacity | 4 A 120 V AC |
| Electrical connection | 8 connectors, clamping capacity: 2.5 mm² |
| Mounting mode | By screws, Clipped |
| Height | External: 85 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Mounting location | 35 mm DIN rail, Cross rails, On mounting plate, Spacial upright |
| Ambient air temperature for operation | -40…80 °C |
| Hysteresis | 3 % |
| Number of outputs | 2 ventilation/heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UR |
Packaging
| Package 1 | 1 PCE, 4.500 cm × 5.000 cm × 7.000 cm (L × W × H), 180.000 g |
