Schneider Electric NSYCCOHY230VID
Climasys CC - electronic hygrostat - 200…240 V - Hr 20…80% - OLED screen
- MPN
- NSYCCOHY230VID
- EAN
- 3606480152634
- Category
- ClimaSys CC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

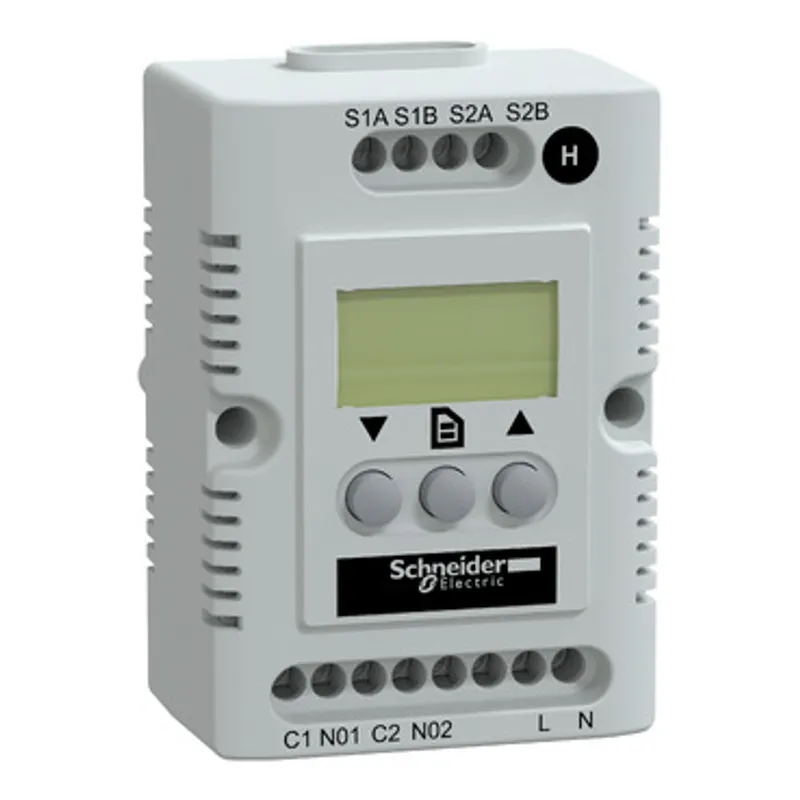

What is the Schneider Electric NSYCCOHY230VID?
Climasys CC electronic hygrostat with OLED screen. H is 85 x W is 56 x D is 44 mm. Displays relative humidity. 6 terminals 2.5 mm² electric connection. 2 outputs heating function. Input voltage is 200 to 240V. Humidity Range is 20…80%. Hysteresis 3 %. Polycarbonate made, Self-extinguishing conforming to UL94 (material V0). Light grey. Mounting location is on mounting plate, 35 mm DIN rail, Spacial upright or Cross rails.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Electronic hygrostat |
| Humidity setting range | 20…80 % |
| Display type | OLED screen |
| Information displayed | Relative humidity |
| Input voltage | 200...240 V AC |
| Maximum switching capacity | 4 A 230 V AC |
| Electrical connection | 6 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | By screws, Clipped |
| Height | External: 85 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Mounting location | On mounting plate, Cross rails, 35 mm DIN rail, Spacial upright |
| Ambient air temperature for operation | -40…80 °C |
| Hysteresis | 3 % |
| Number of outputs | 2 heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UR |
Packaging
| Package 1 | 1 PCE, 8.700 cm × 7.500 cm × 5.800 cm (L × W × H), 154.000 g |
| Package 2 | 75 CAR, 45.000 cm × 30.300 cm × 27.000 cm (L × W × H), 11.550 kg |
| Package 3 | 900 PAM, 120.000 cm × 100.000 cm × 93.000 cm (L × W × H), 150.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCCOHY230VID: frequently asked questions
When can NSYCCOHY230VID be shipped?
NSYCCOHY230VID is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCCOHY230VID in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCCOHY230VID and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCCOHY230VID, subject to availability and destination.
