Schneider Electric NSYCCOHYT230VID
Climasys CC - electronic hygrotherm - 200…240 V - temp -40…80 C - Hr 20…80%
- MPN
- NSYCCOHYT230VID
- EAN
- 3606480152597
- Category
- ClimaSys CC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

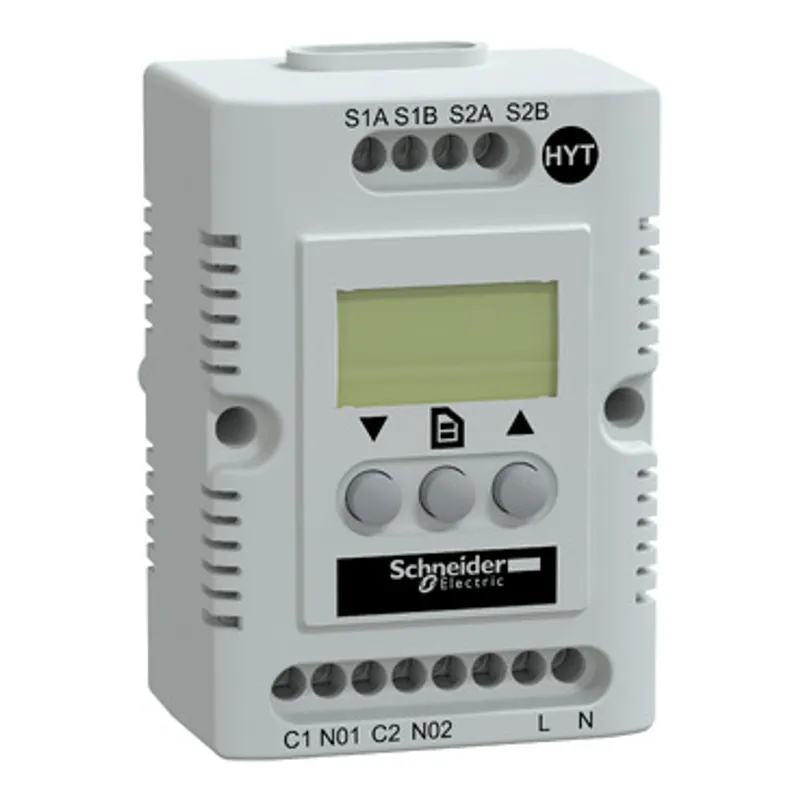

What is the Schneider Electric NSYCCOHYT230VID?
ClimaSys CC Electronic hygrotherm. Display type by OLED screen. 200V AC to 240 V AC. 85 x 56 x 44 mm. Optional NTC external sensor. Electrical connection by 8 connectors 2.5mm². Mounting mode by screws or clipped. 2 ventilation/heating function. Made in PC. Light grey. Self-extinguishing UL94 (material V0), Protection IP20.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Electronic hygrotherm |
| Temperature setting range | -40…80 °C |
| Humidity setting range | 20…80 % |
| Display type | OLED screen |
| Information displayed | Relative humidity, Temperature in °F, Temperature in °C |
| Input voltage | 200...240 V AC |
| Sensor type | Optional NTC external sensor |
| Maximum switching capacity | 4 A 230 V AC |
| Electrical connection | 8 connectors, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped, By screws |
| Height | External: 85 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Mounting location | 35 mm DIN rail, Cross rails, Spacial upright, On mounting plate |
| Ambient air temperature for operation | -40…80 °C |
| Hysteresis | 3 % |
| Number of outputs | 2 ventilation/heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UR |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 7.500 cm × 7.000 cm (L × W × H), 160.000 g |
| Package 2 | 75 CAR, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 12.000 kg |
