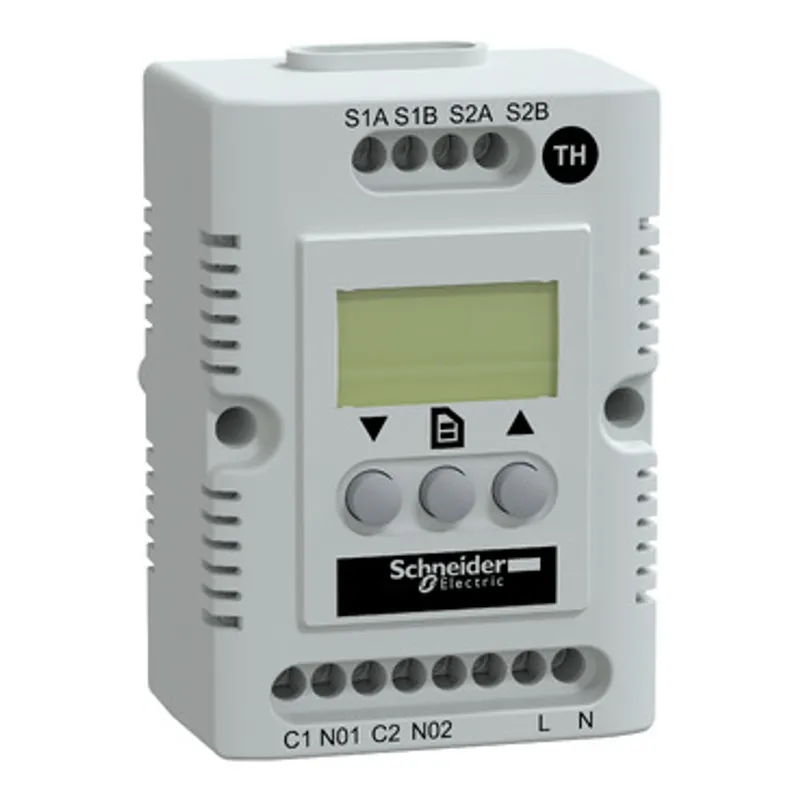

Schneider Electric NSYCCOTH230VID
Climasys CC - Electronical thermostat 200..240V - range of temperature -40…80°C
- MPN
- NSYCCOTH230VID
- EAN
- 3606480152627
- Category
- ClimaSys CC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCCOTH230VID?
Schneider Electric Climasys CC - Electronical thermostat 200..240V - range of temperature -40…80°C, manufacturer part number NSYCCOTH230VID. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Electronical thermostat |
| Temperature setting range | -40…80 °C |
| Display type | OLED screen |
| Information displayed | Temperature in °F, Temperature in °C |
| Input voltage | 200...240 V AC |
| Sensor type | Optional NTC external sensor |
| Maximum switching capacity | 4 A 230 V AC |
| Electrical connection | 10 terminals, clamping capacity: 2.5 mm² |
| Mounting mode | Clipped, By screws |
| Height | External: 85 mm |
| Width | External: 56 mm |
| Depth | External : 44 mm |
| Mounting location | Cross rails, On mounting plate, Spacial upright, 35 mm DIN rail |
| Ambient air temperature for operation | -40…80 °C |
| Hysteresis | 2 K programmed value |
| Number of outputs | 2 ventilation/heating function |
| Material | PC |
| Colour | Light grey |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product certifications | UR |
Packaging
| Package 1 | 1 PCE, 5.500 cm × 7.500 cm × 8.500 cm (L × W × H), 70.000 g |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCCOTH230VID: frequently asked questions
When can NSYCCOTH230VID be shipped?
NSYCCOTH230VID is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCCOTH230VID in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCCOTH230VID and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCCOTH230VID, subject to availability and destination.
