Schneider Electric NSYCCOFSEM8U2

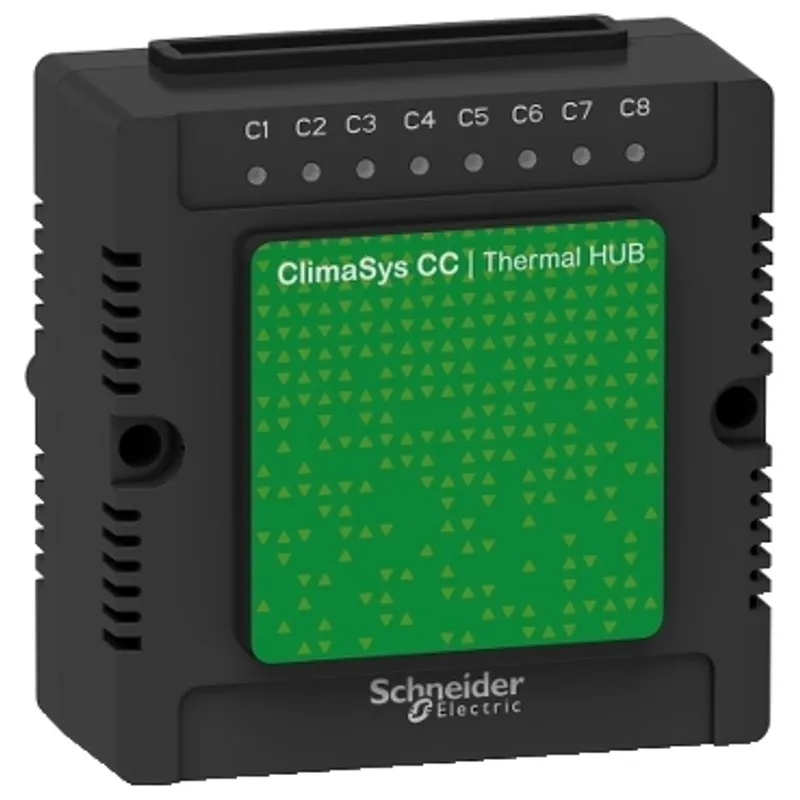

ClimaSys CC - Thermal Hub Controller AC (90-250V)
- MPN
- NSYCCOFSEM8U2
- EAN
- 3606489559281
- Category
- ClimaSys CC
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYCCOFSEM8U2?
Schneider Electric ClimaSys CC - Thermal Hub Controller AC (90-250V), manufacturer part number NSYCCOFSEM8U2. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | ClimaSys |
| Product name | ClimaSys CC |
| Product or component type | Hub |
| Range compatibility | Spacial, PanelSeT |
| Device application | Extension module (to be used when more than 4 com ports are needed), Up to 255 connections |
| Device connection | Dust sensor, Fan sensor, Controller, Other hub |
| Rated voltage | 90…240 V AC 50/60 Hz |
| Display type | Without display (all information displayed on controller) |
| Number of port | 8 |
| Communication interface | Modbus between sensor, controller and hub |
| Input voltage | 15.5 V DC 150 mA |
| Local signalling | Channel status (busy with communication): 8 green/orange LEDs by blinking, Channel status (problem with the channel when connector is plugged): without light indicator |
| Mounting support | 35 mm DIN rail, Cross rails Spacial upright between joined enclosures, On mounting plate screw connection, door of enclosure (Spacial) using frame |
| Quantity per set | Set of 1 |
| Width | External: 80 mm |
| Height | External: 80 mm |
| Depth | External : 49.75 mm |
| Product certifications | CE, EAC |
Packaging
| Package 1 | 1 PCE, 9.000 cm × 9.000 cm × 7.500 cm (L × W × H), 206.000 g |
| Package 2 | 20 CAR, 39.000 cm × 33.000 cm × 19.000 cm (L × W × H), 4.320 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYCCOFSEM8U2: frequently asked questions
When can NSYCCOFSEM8U2 be shipped?
NSYCCOFSEM8U2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYCCOFSEM8U2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYCCOFSEM8U2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYCCOFSEM8U2, subject to availability and destination.
