Schneider Electric NSYAS600
Setting support 600 mm
- MPN
- NSYAS600
- EAN
- 3606480062865
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAS600?

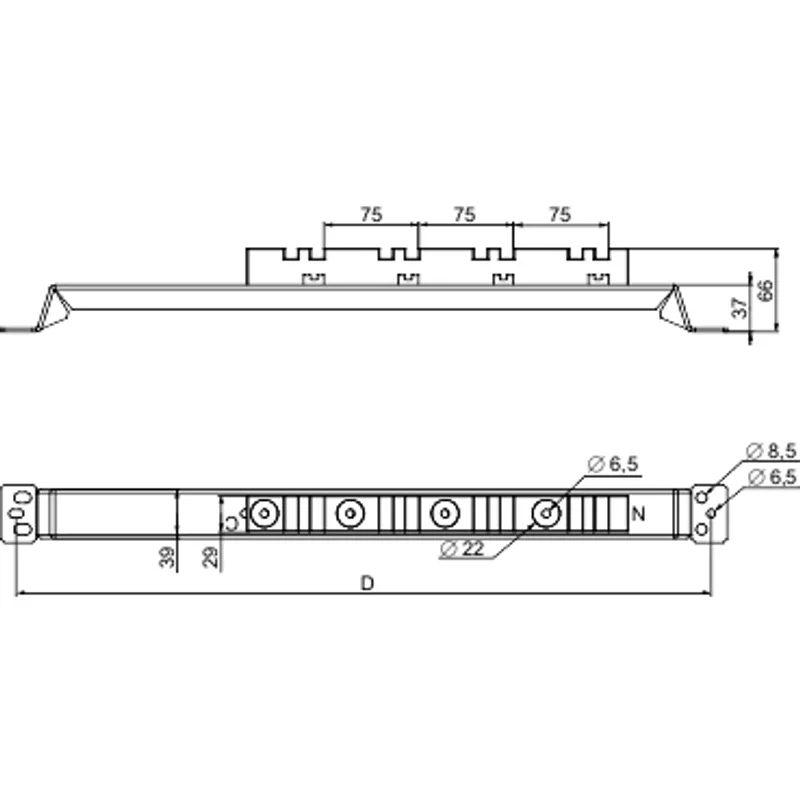

Bar support used for Prisma and multi-purpose application in Spacial SF, Linergy LGYE, Linergy BS, Spacial SFP and Prisma PH enclosures The bar support fixing centers width is 550mm and nominal width is 600mm The height is 66mm The depth is 39mm Busbar distance is 75mm
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Support accessory |
| Product or component type | Bar support |
| Anwendung | Prisma application, Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Bottom |
| Busbar position | Vertical |
| Range compatibility | PanelSeT PanelSeT SF, Linergy Linergy LGYE, Linergy Linergy BS, Prisma Prisma PH |
| Cubicle-device connection | Linergy LGYE lateral busbar, Linergy BS lateral busbar |
| Device composition | Fixing elements, 1 insulating bar support, 1 metal support |
| Quantity per set | Set of 1 |
| Material | Bar support: plastic, Metal support: steel |
| Fixing mode | By fixing element - bottom frame of enclosure location |
| Height | 66 mm |
| Width | Fixing centers: 550 mm, Nominal: 600 mm |
| Depth | 39 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 60.000 cm × 8.000 cm × 5.000 cm (L × W × H), 1.342 kg |
