Actassi - vertical power distribution rail - 10 sockets+switch UTE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Actassi for Europe |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.03 kg |
Shipping & availability
When can NSYAPUF10S be shipped?
NSYAPUF10S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYAPUF10S in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYAPUF10S and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYAPUF10S, subject to availability and destination.
10 sockets outlets with recessed green led switch equippped with power cords type H05 VVF, equipped with a mould right angle plug with earthing contact system. Vertical sockets strip with pin-earthed outlets, with child protection. Material composed by fibreglass polyamide plastic with fire resistance to 850°C Could be used in: France, Belgium, Poland, Monaco, Slovakia, Czech Republic.
Specifications
Specifications
| Range | Actassi |
| Product or component type | Power distribution rail |
| Device application | Multi-purpose |
| Outlet standard description | Pin earth |
| Accessory / separate part category | Current distribution accessory |
| Outlet poles configuration | 2P + E with shutters |
| Quantity per set | Set of 1 |
| Colour | Aluminium |
| Device composition | 1 power rail, fixing elements |
| Ground lug position | 35° ground lug |
| Socket number | 10 |
| [In] rated current | 16 A |
| [Ue] rated operational voltage | 230 V AC |
| Control type | Green LED switch |
| Mounting support | Upright |
| fixing mode | By brackets |
| Material | Polyamide 6 with 30 % fibre glass |
| Surface finish | Anodized |
| Electrical connection | 3 m power cord 3 x 1.5 mm² H05VV-F3G1.5 |
| Width | 968 mm |
| Depth | 44 mm |
| fire resistance | 850 °C |
| Quality labels | UTE |
| Standards | NBN C 61-112-1, IEC 60884, NFC 61-314 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 9.000 cm |
| Package 1 Width | 10.000 cm |
| Package 1 Length | 110.000 cm |
| Package 1 Weight | 2.026 kg |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 6 |
| Package 2 Height | 29.000 cm |
| Package 2 Width | 37.500 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 12.156 kg |
| Warranty (in months) | 18 |
More Schneider Electric parts
Available on requestActassi - 1U power distribution rail - 8 sockets+switch 19P UTE
Available on requestActassi - 1U power distribution rail - 9 sockets 19P UTE
Available on requestActassi - 1U power distribution rail - 8 sockets+switch 19P VDE
Available on requestActassi - 1U power distribution rail - 9 sockets 19P VDE

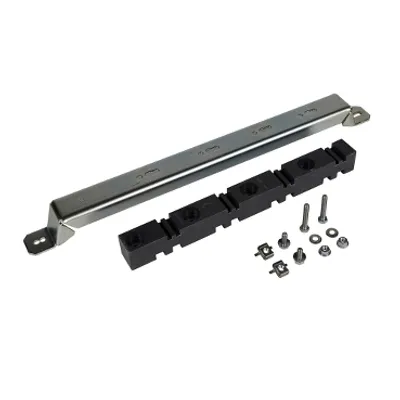

Available on requestSetting support 500 mm
Available on requestSetting support 600 mm

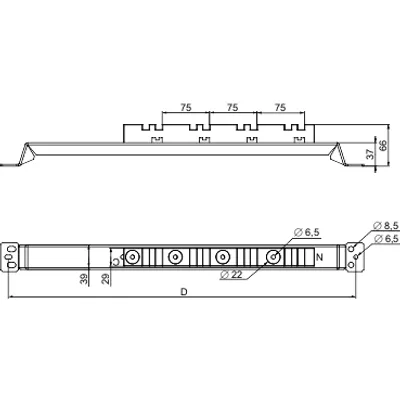

Available on requestSetting support 800 mm

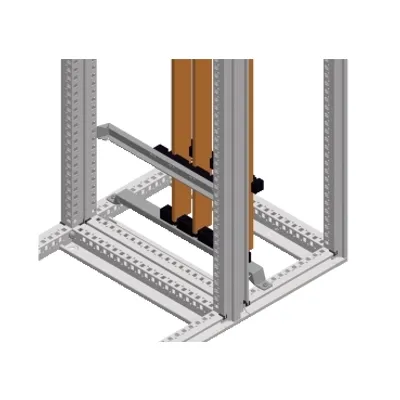

Available on requestLower sup. Ver. Busbars In 3200A 10mm bars. Bar distance 115mm. For 800mm witdhs
